Warm Up

Warm Up. Give the formula that will result from reacting the following ions: Na + , O 2- Al 3+, Cl - Mg 2+ , N 3- Al 3+ , S 2- Ca + , Br -. Na 2 O sodium oxide AlCl 3 aluminum chloride Mg 3 N 2 magnesium nitride

wilda
Télécharger la présentation

Warm Up

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

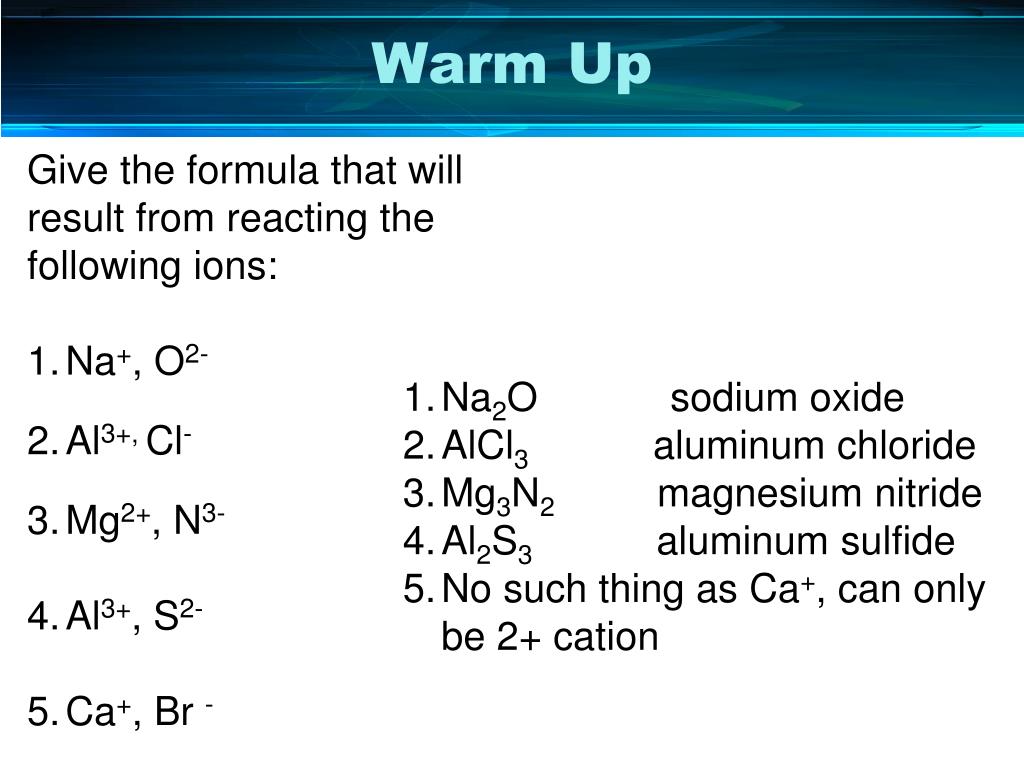

  1. Warm Up Give the formula that will result from reacting the following ions: Na+, O2- Al3+, Cl- Mg2+, N3- Al3+, S2- Ca+, Br - Na2O sodium oxide AlCl3 aluminum chloride Mg3N2 magnesium nitride Al2S3 aluminum sulfide No such thing as Ca+, can only be 2+ cation

  2. Ionic Bonds and Compounds Section 7.2

  3. Learning Objectives • Understand how ionic bonds are formed • Know that ionic compounds come from cation and anion attraction to each other • Get a feel for the structure and properties of ionic solids

  4. Overview of Bonding • Chemical bond: attractive force holding two or more atoms together. • Covalent bond results from sharing electrons between the atoms. Usually found between nonmetals. • Ionic bond results from the transfer of electrons from a metal to a nonmetal. • Metallic bond: attractive force holding pure metals together.

  5. Ionic Bonds • An ionic bond is typically formed between a metal and a non-metal.  • Metals have low electronegativities (less than 2.0), while non-metals have high electronegativities (above 2.0). • Consequently, the non-metal is "stronger" than the metal, and can steal electrons very easily from the metal.  • This results in the metal becoming a cation, and the non-metal becoming an anion.

  6. Ionic Bonds

  7. Ionic Bonds

  8. Ionic Bonds Ionic bonds are not about sharing electrons rather …. The more electronegative element (anion to be) simply steals the electron(s) from the more electropositive element (cation to be).

  9. Ionic Bonds

  10. Ionic Bonds-Simple Animation Sodium Fluoride

  11. Ionic Compound Structure

  12. Ionic Compound Structure

  13. Ionic Compounds • Cations and anions are attracted by electrostatic forces to form ionic bonds • Bonding occurs to create an electrically neutral ionic compound • Chemical formula for ionic compounds called formula unit

  14. Properties of Ionic Crystals • Most ionic compounds are crystals at room temperature • Attraction of + and - ions results in a stable structure = high melting temperature

  15. Ionic vs. Covalent Ionic CovalentCompounds Compounds • Crystalline solids • High melting and boiling points • Conduct electricity when melted • Many soluble in water but not in nonpolar liquid • Gases, liquids, or solids • Low melting and boiling points-moth balls • Poorelectrical conductors • Many soluble in nonpolar liquids but not in water

  16. Coordination Number • Coordination number is the number of ions of opposite charge that surround the ion in a crystal

  17. Pretty Ionic Solids CaF2 (fluorite) HgS (cinnabar) FeS2 (pyrite) PbMoO4 (wulfenite) CaCO3 (aragonite) TiO2 (rutile)
