Optical Flow Sensor

DESCRIPTION

An optical flow sensor smart camera is a sophisticated device that combines the capabilities of a camera and an optical flow sensor to provide enhanced visual perception and motion detection. It is designed to capture images and accurately track the movement of objects within its field of view.<br>Visit https://robomart.com for more info.<br><br>

Télécharger la présentation

Optical Flow Sensor

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

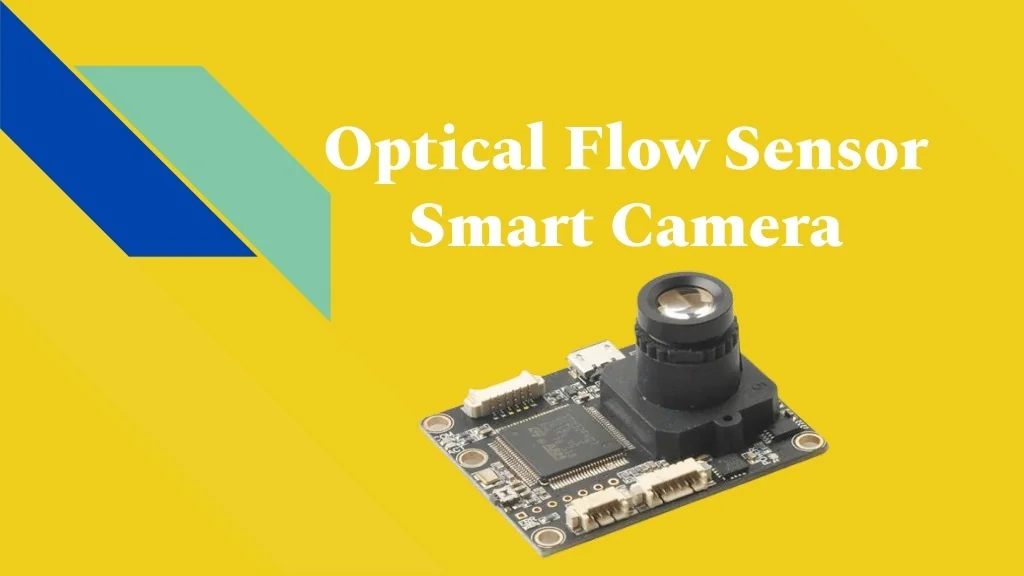

  1. Optical Flow Sensor Smart Camera

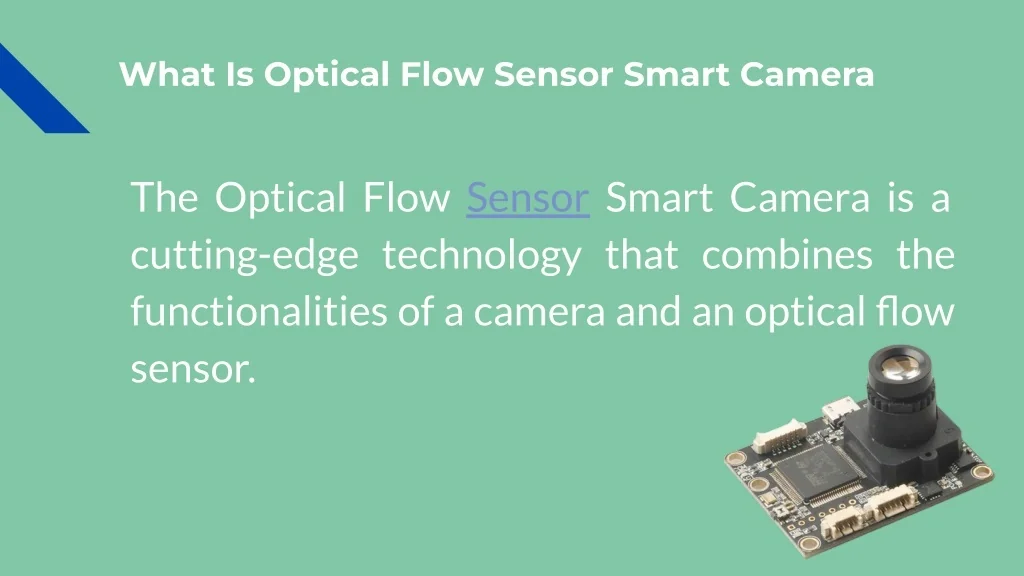

  2. What Is Optical Flow Sensor Smart Camera The Optical Flow Sensor Smart Camera is a cutting-edge technology that combines the functionalities of a camera and an optical flow sensor.

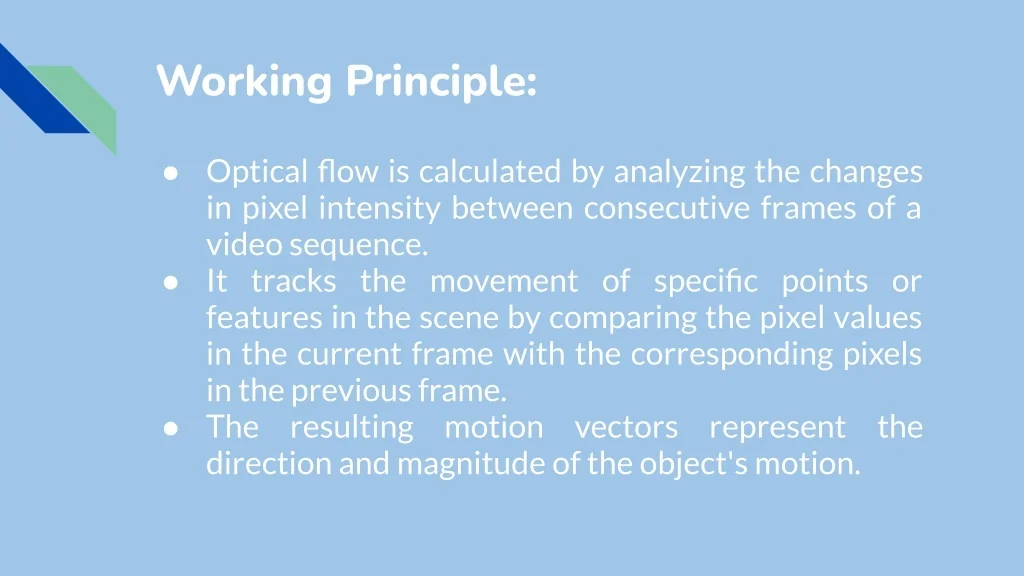

  3. Working Principle: ● Optical flow is calculated by analyzing the changes in pixel intensity between consecutive frames of a video sequence. ● It tracks the movement of specific points or features in the scene by comparing the pixel values in the current frame with the corresponding pixels in the previous frame. ● The resulting motion vectors represent the direction and magnitude of the object's motion.

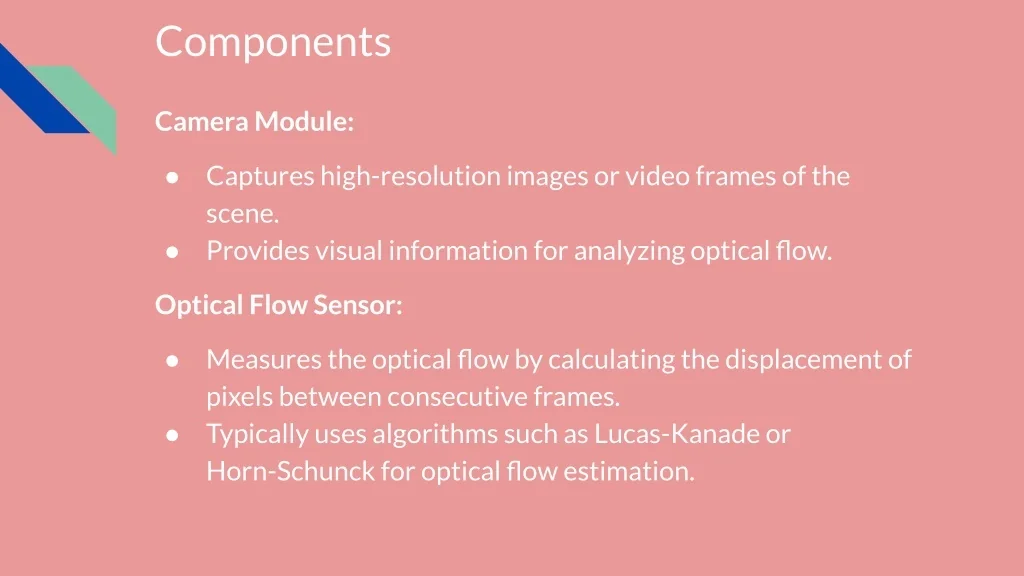

  4. Components Camera Module: Captures high-resolution images or video frames of the scene. Provides visual information for analyzing optical flow. ● ● Optical Flow Sensor: Measures the optical flow by calculating the displacement of pixels between consecutive frames. Typically uses algorithms such as Lucas-Kanade or Horn-Schunck for optical flow estimation. ● ●

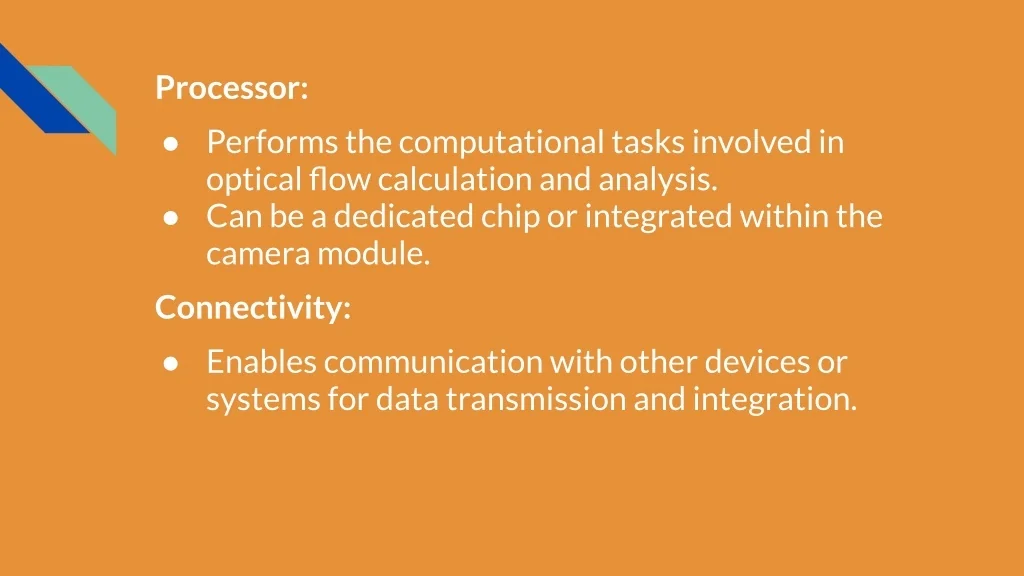

  5. Processor: ● Performs the computational tasks involved in optical flow calculation and analysis. ● Can be a dedicated chip or integrated within the camera module. Connectivity: ● Enables communication with other devices or systems for data transmission and integration.

  6. Benefits of Optical Flow Sensor Smart Cameras ● Accurate Motion Estimation ● Low Power Consumption ● Robustness to Illumination Changes ● Real-Time Processing
