  1. Ionic Bonding Naming Ionic Compounds

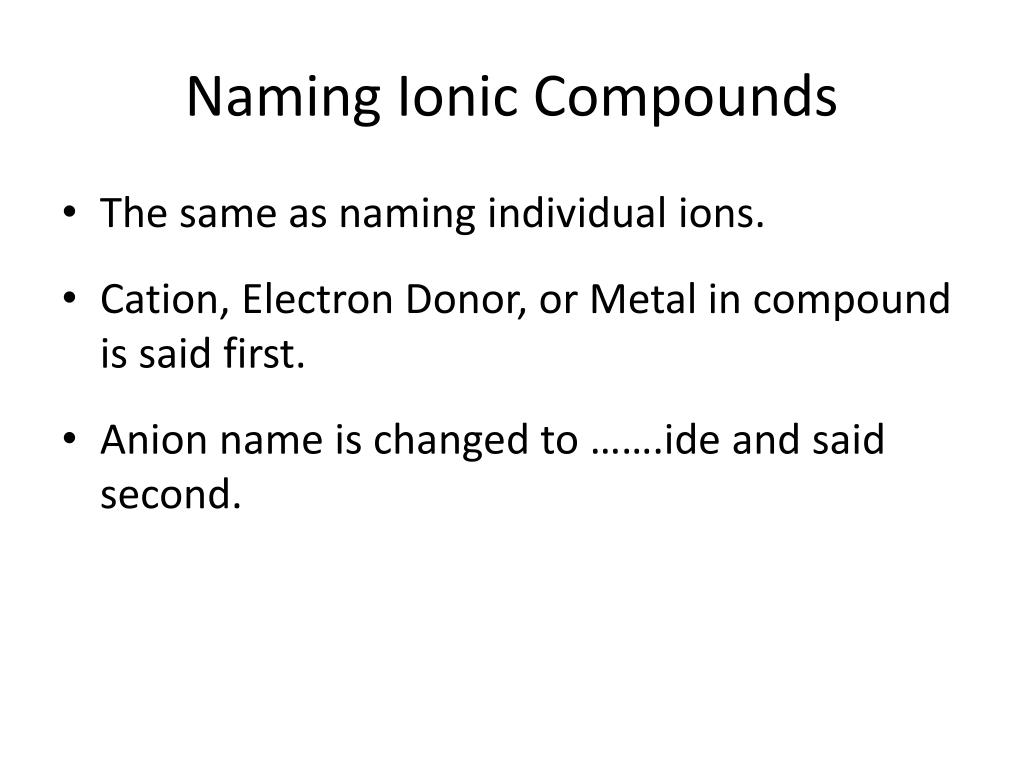

  2. Naming Ionic Compounds • The same as naming individual ions. • Cation, Electron Donor, or Metal in compound is said first. • Anion name is changed to …….ide and said second.

  3. Examples • Sodium Chloride • Magnesium Oxide • Lithium Nitride • Potassium Bromide

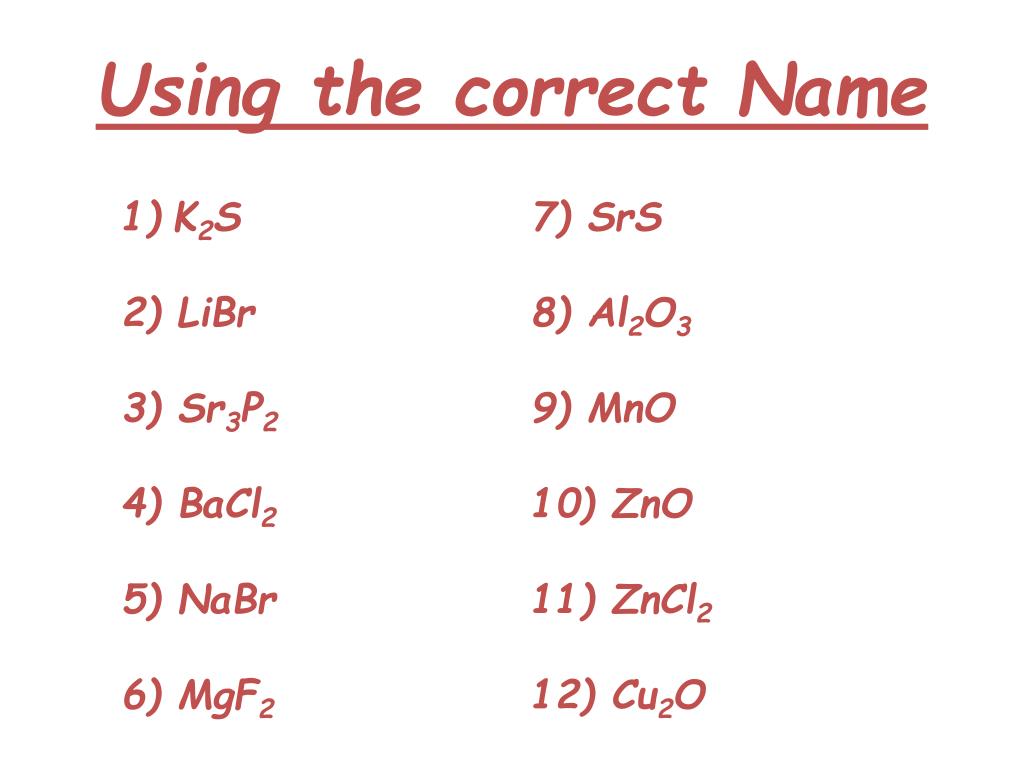

  4. Using the correct Name • K2S 7) SrS • 2) LiBr 8) Al2O3 • 3) Sr3P2 9) MnO • 4) BaCl2 10) ZnO • 5) NaBr 11) ZnCl2 • 6) MgF2 12) Cu2O

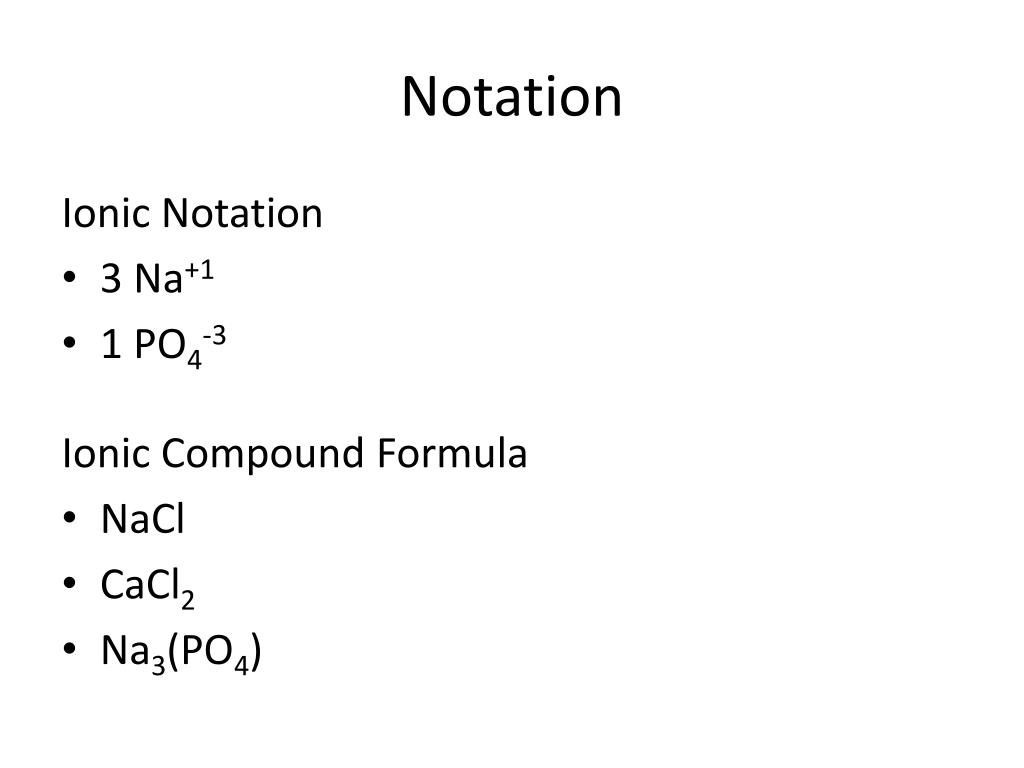

  5. Notation Ionic Notation • 3 Na+1 • 1 PO4-3 Ionic Compound Formula • NaCl • CaCl2 • Na3(PO4)

  6. Formulas Rules for Writing Formulas • Metallic Donor is always written first. • Nonmetallic Receiver is written second. • Write the number of atoms required to balance the formula as subscripts after the element in compound. • NaCl • MgO • MgCl2

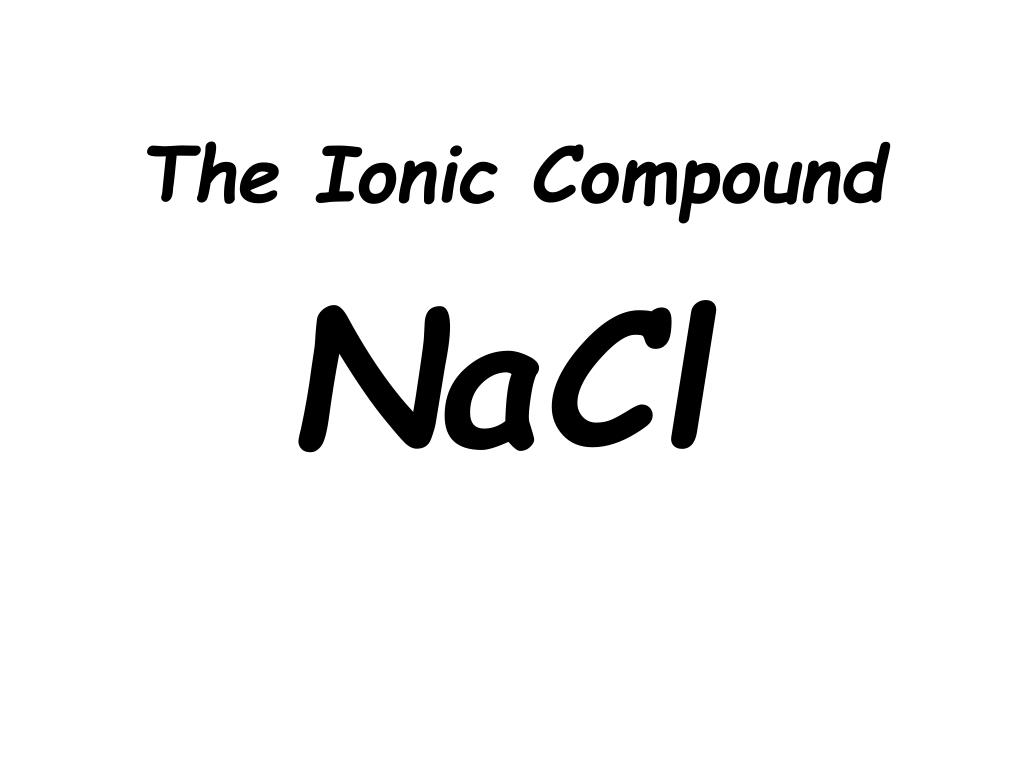

  7. The Ionic Compound NaCl

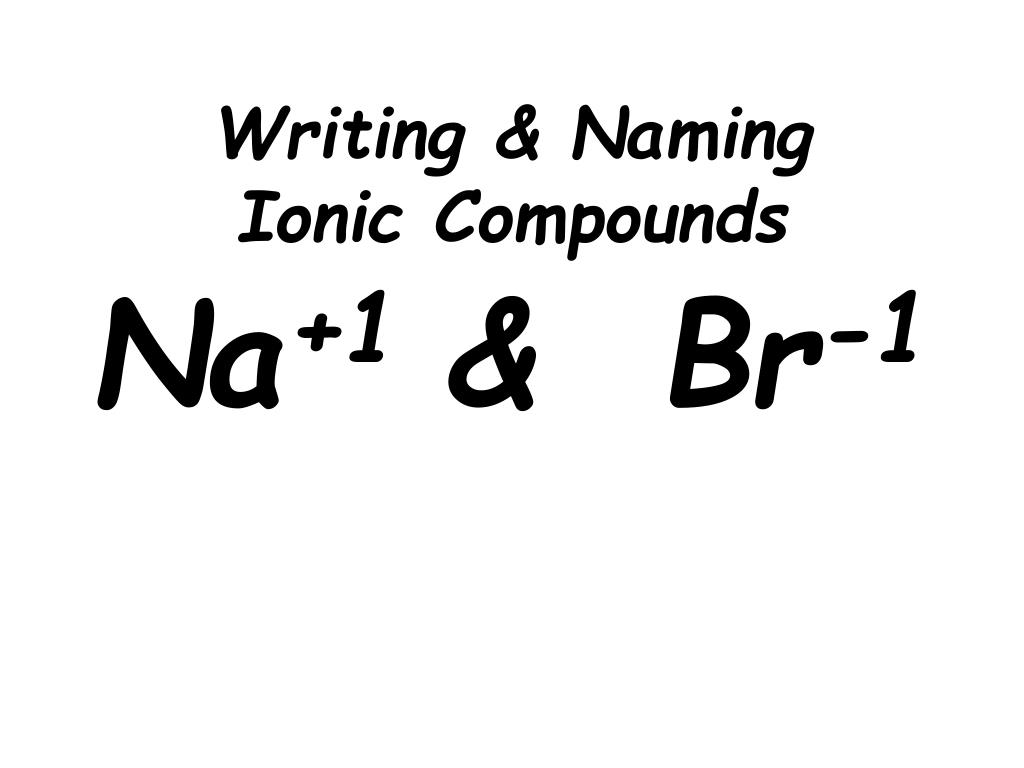

  8. Writing & NamingIonic Compounds Na+1 & Br-1

  9. Writing & NamingIonic Compounds Ca+2 & Br-1

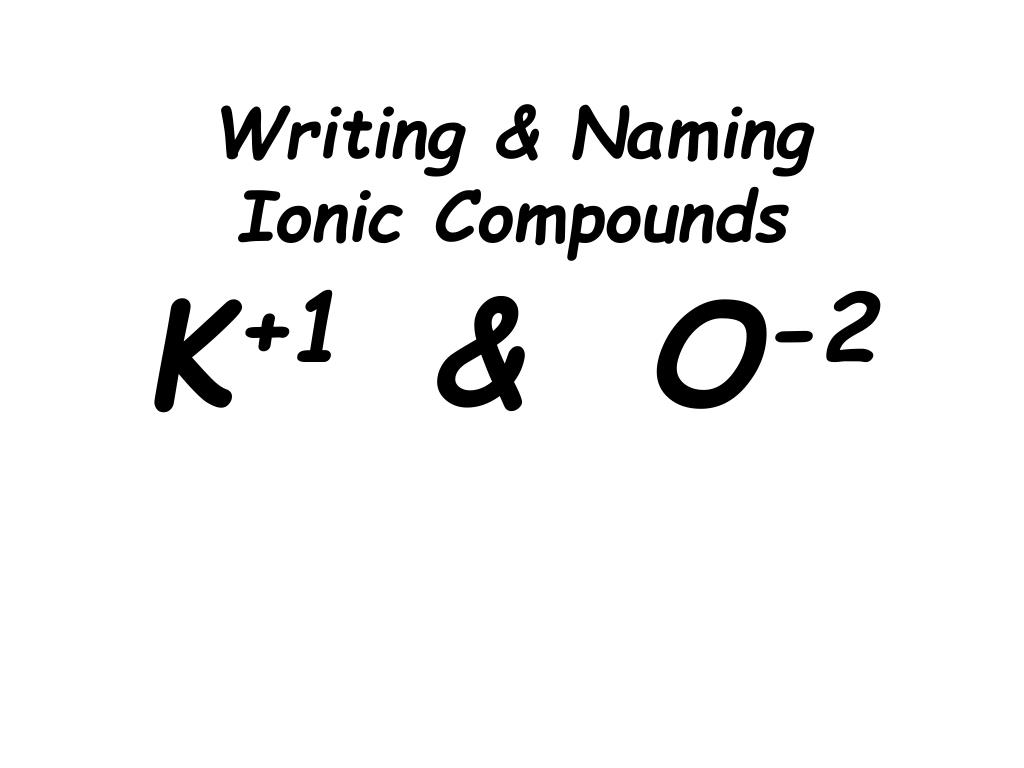

  10. Writing & NamingIonic Compounds K+1 & O-2

  11. Writing & NamingIonic Compounds Li ? & N ?

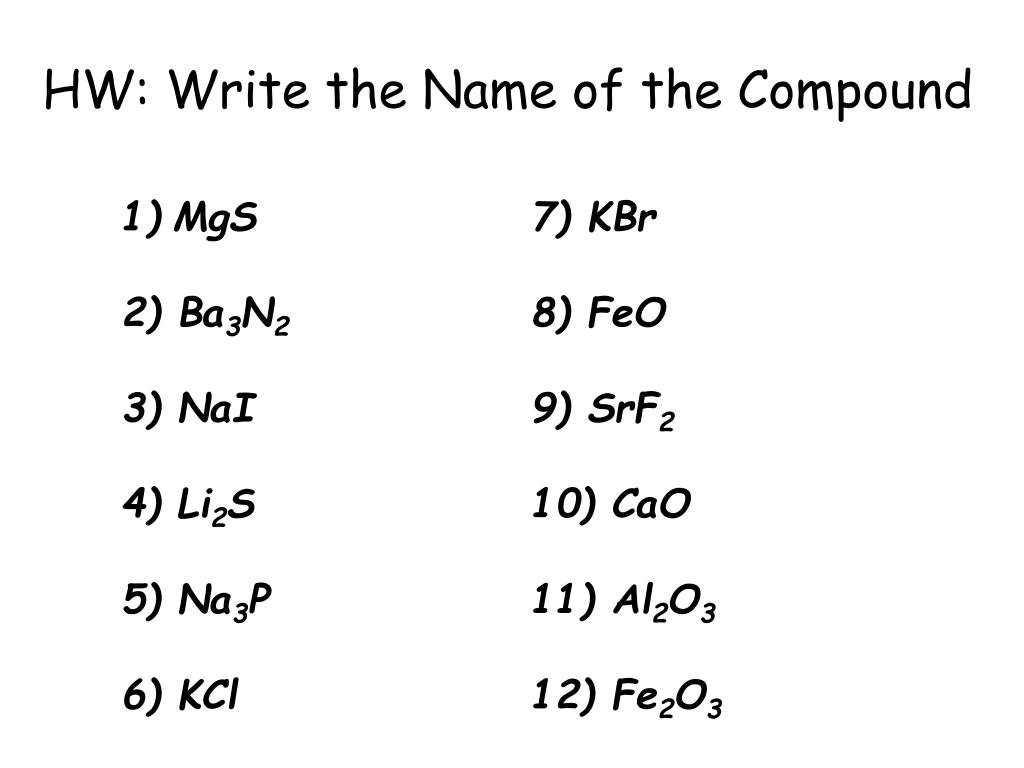

  12. HW: Write the Name of the Compound • MgS 7) KBr • 2) Ba3N2 8) FeO • 3) NaI 9) SrF2 • 4) Li2S 10) CaO • 5) Na3P 11) Al2O3 • 6) KCl 12) Fe2O3

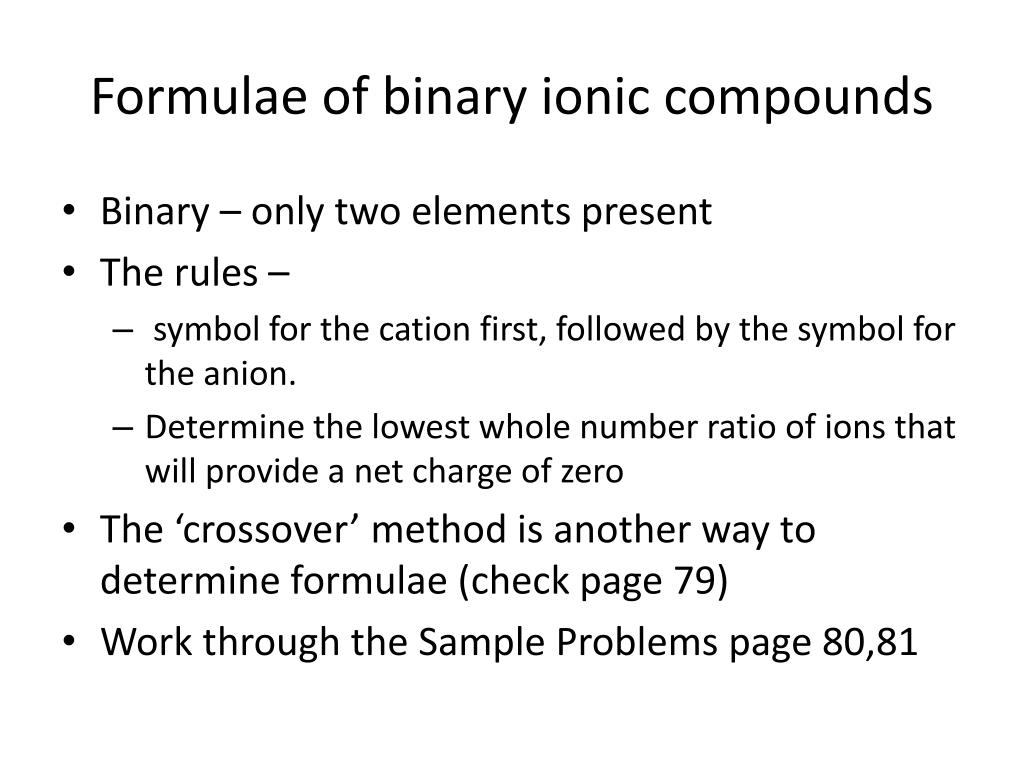

  13. Formulae of binary ionic compounds • Binary – only two elements present • The rules – • symbol for the cation first, followed by the symbol for the anion. • Determine the lowest whole number ratio of ions that will provide a net charge of zero • The ‘crossover’ method is another way to determine formulae (check page 79) • Work through the Sample Problems page 80,81

  14. Review • Complete the revision questions page 81 (13 – 16)

  15. Ions of Variable Charge • Some transition metals have quite complicated arrangement of electrons and may be able to form more than one ion. Such ions have different charges. • This is very significant as ions of the same element with different charges have different physical and chemical properties. • Eg – a solution of Cr6+ is orange, whereas a solutions of Cr3+ is yellow.

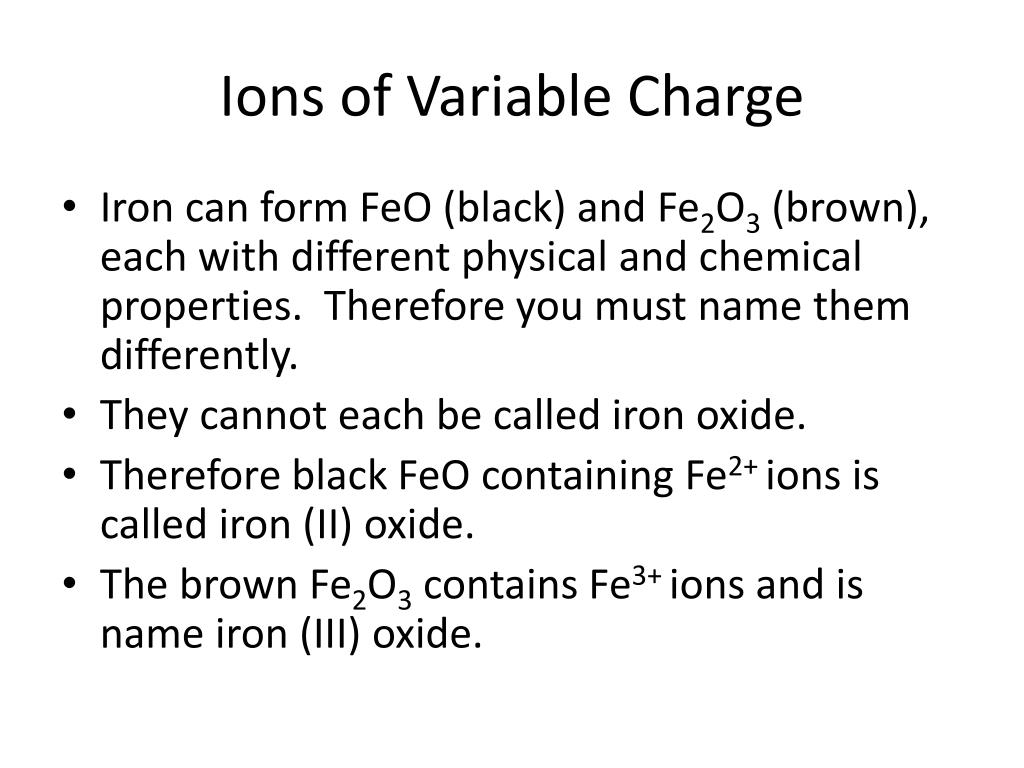

  16. Ions of Variable Charge • Iron can form FeO (black) and Fe2O3 (brown), each with different physical and chemical properties. Therefore you must name them differently. • They cannot each be called iron oxide. • Therefore black FeO containing Fe2+ ions is called iron (II) oxide. • The brown Fe2O3 contains Fe3+ ions and is name iron (III) oxide.

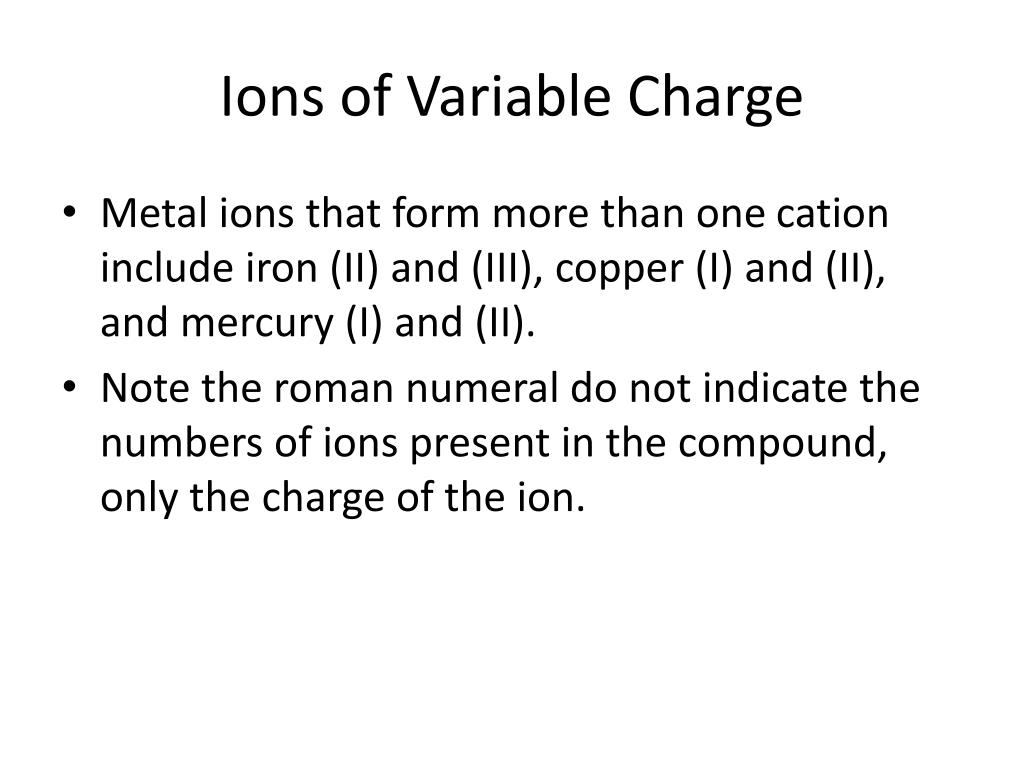

  17. Ions of Variable Charge • Metal ions that form more than one cation include iron (II) and (III), copper (I) and (II), and mercury (I) and (II). • Note the roman numeral do not indicate the numbers of ions present in the compound, only the charge of the ion.

  18. Ions of Variable Charge • Work through the Sample Problem page82

  19. Review • Complete the revision questions page 82 (17,18)

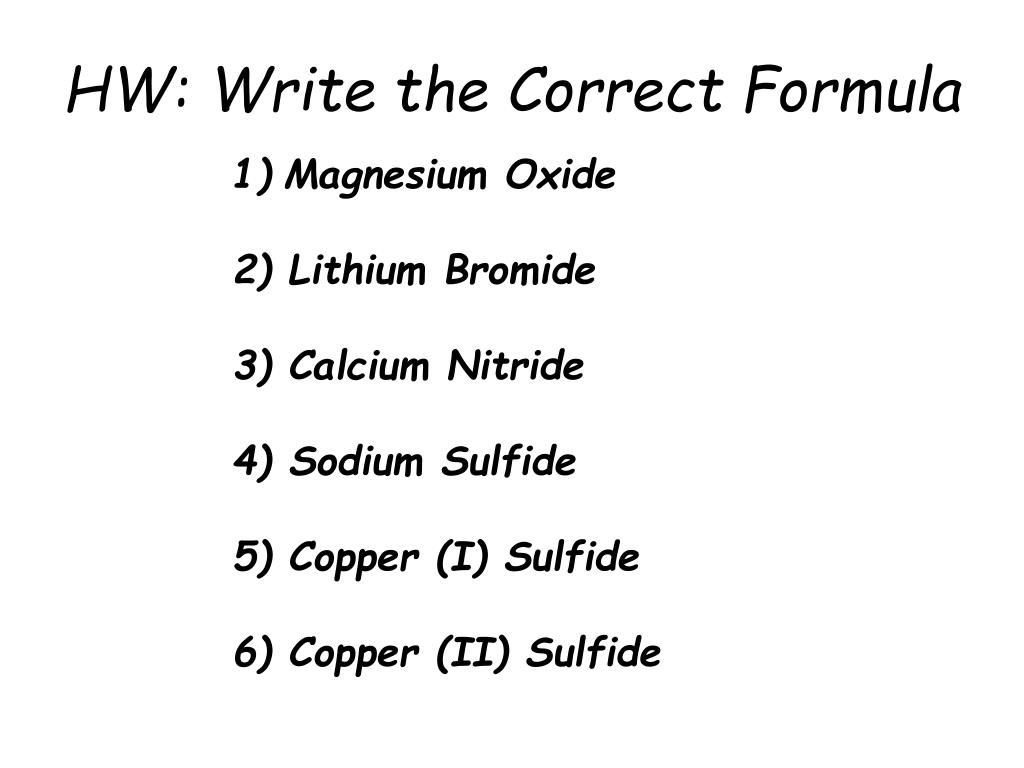

  20. HW: Write the Correct Formula • Magnesium Oxide • 2) Lithium Bromide • 3) Calcium Nitride • 4) Sodium Sulfide • 5) Copper (I) Sulfide • 6) Copper (II) Sulfide

  21. Practice Exercise #1 • Which will donate, Which will receive? • How many will be donated/received? • Write the Ionic Notation of each. • Write the formula for each of the following. • Lithium Oxide • Potassium Chloride • Sodium Nitride • Calcium Chloride • Magnesium Sulfide • Barium Nitride • Aluminum Fluoride • Aluminum Oxide • Aluminum Nitride

  22. Polyatomic ions • A polyatomic ion is a group of tightly bound atoms that behaves as a single unit and carries an overall charge. It may be a positively or negatively charged ion. • The carbonate ion is composed of one carbon atom and three oxygen atoms. • The whole group of four atoms carries a negative two charge.

  23. Polyatomic Ions • Compound Ions • A group of COVALENTLY bonded atoms that have a net charge (anion or cation) • Most, but not all are Anions.

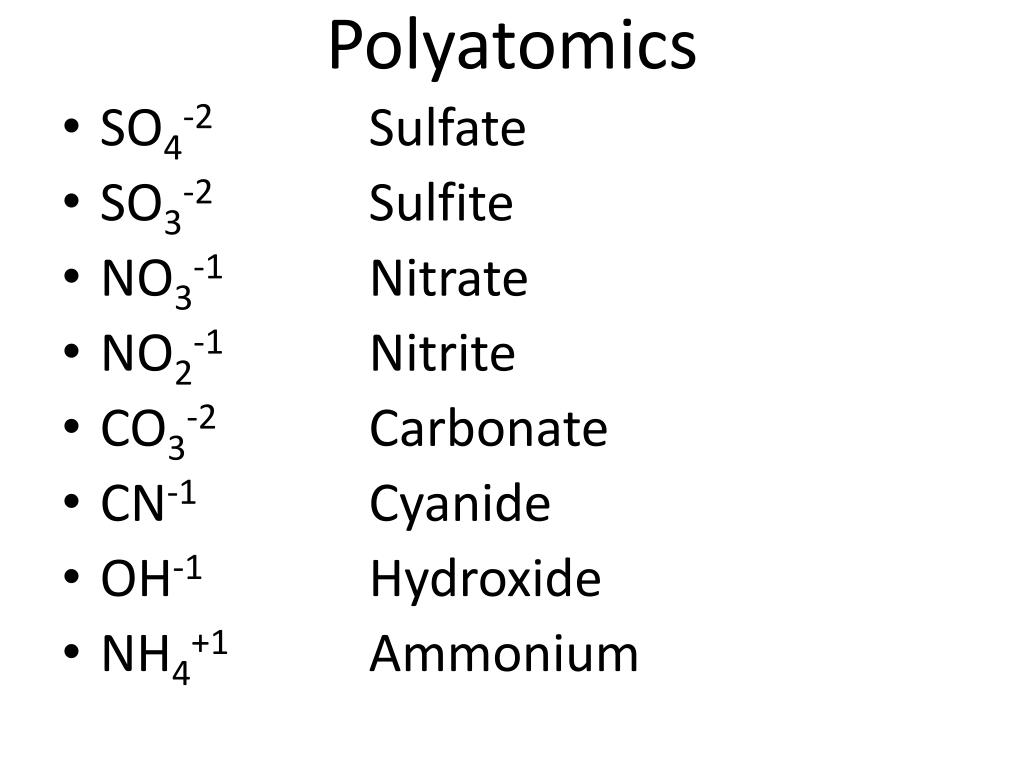

  24. Polyatomics • SO4-2 Sulfate • SO3-2 Sulfite • NO3-1 Nitrate • NO2-1 Nitrite • CO3-2 Carbonate • CN-1 Cyanide • OH-1 Hydroxide • NH4+1 Ammonium

  25. Na3PO4 Na P O

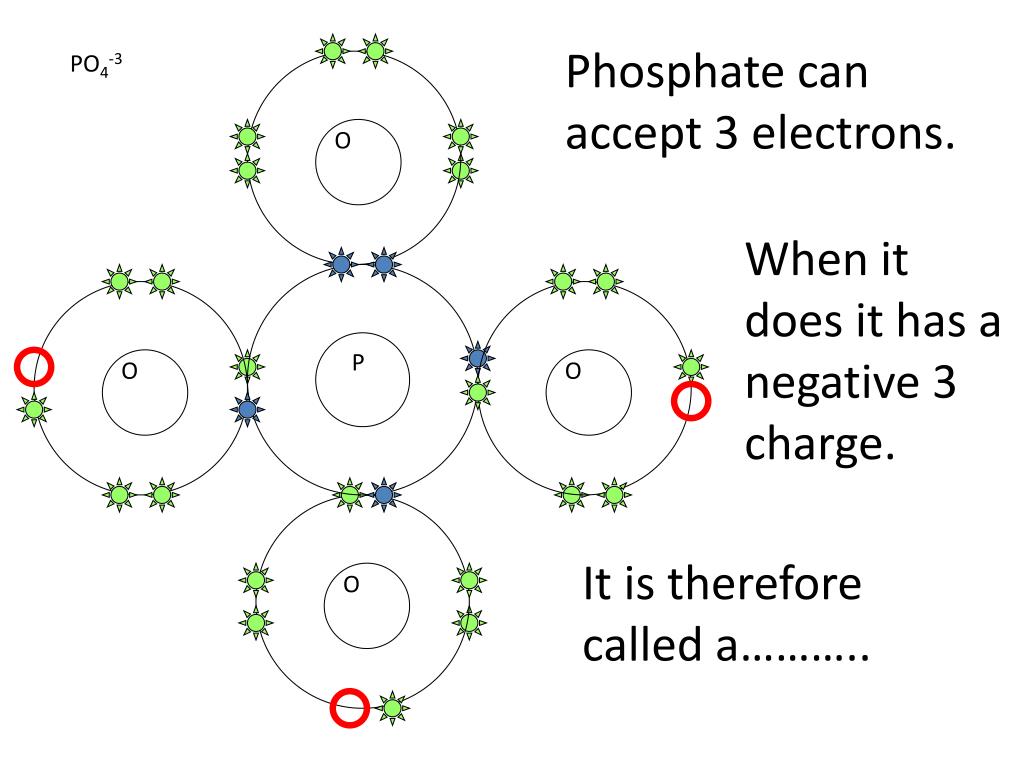

  26. Phosphate can accept 3 electrons. PO4-3 O When it does it has a negative 3 charge. P O O It is therefore called a……….. O

  27. Sodium Phosphate O Na O P O Na O Na3PO4 Na

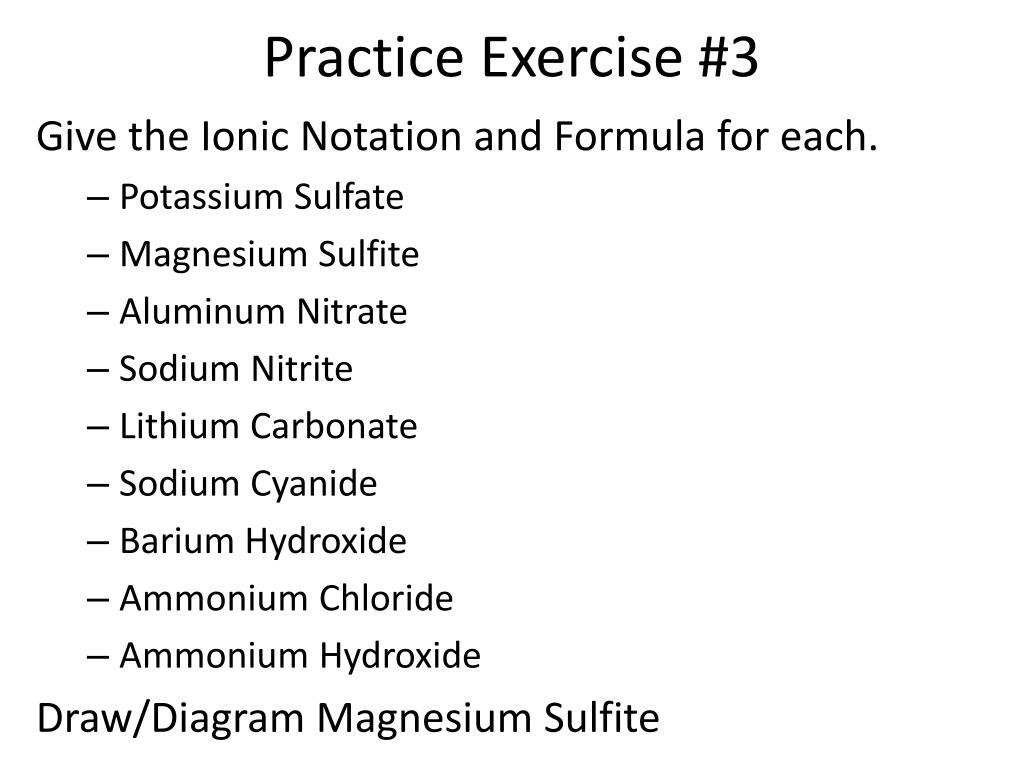

  28. Practice Exercise #3 Give the Ionic Notation and Formula for each. • Potassium Sulfate • Magnesium Sulfite • Aluminum Nitrate • Sodium Nitrite • Lithium Carbonate • Sodium Cyanide • Barium Hydroxide • Ammonium Chloride • Ammonium Hydroxide Draw/Diagram Magnesium Sulfite

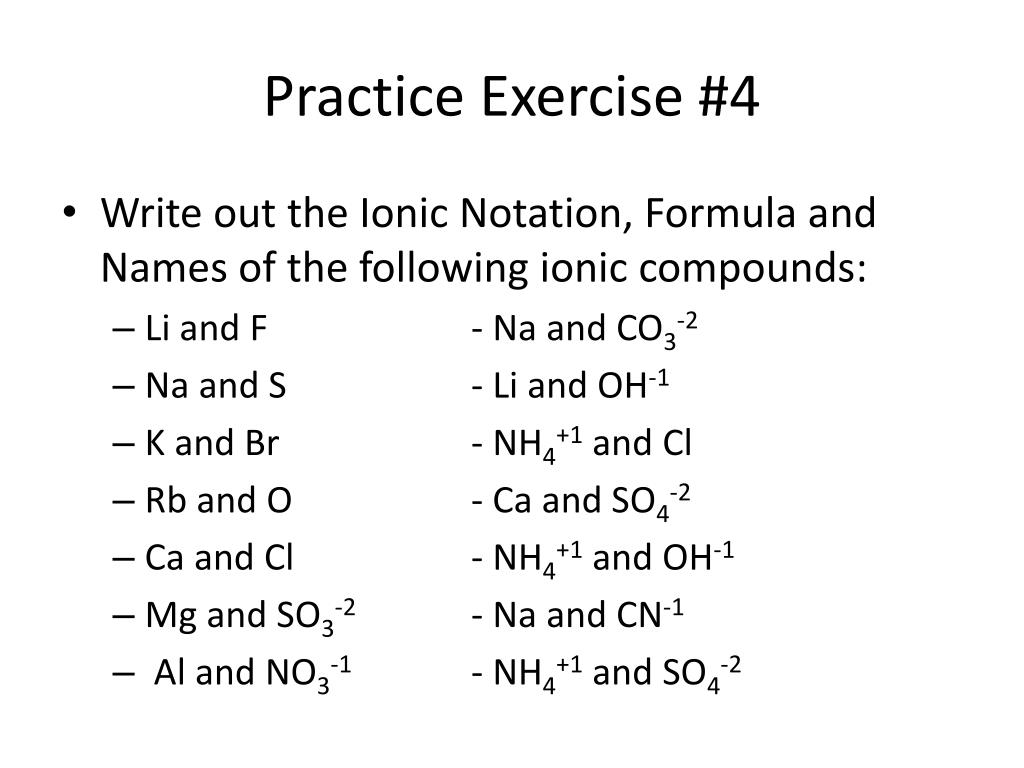

  29. Practice Exercise #4 • Write out the Ionic Notation, Formula and Names of the following ionic compounds: • Li and F - Na and CO3-2 • Na and S - Li and OH-1 • K and Br - NH4+1 and Cl • Rb and O - Ca and SO4-2 • Ca and Cl - NH4+1 and OH-1 • Mg and SO3-2 - Na and CN-1 • Al and NO3-1 - NH4+1 and SO4-2

  30. Polyatomic ions • Work through the Sample Problem pages 84, 85

  31. Review • Complete the revision questions page 85 (19 – 21)

  32. Hydrated ionic compounds • A number of ionic compounds, called hydrates, produce water when they decompose upon heating. When the formula of a hydrated compound is written, the number of water molecules is also included. • Eg. – the formula for iron(II) sulphate octahydrate is written as FeSO4. 8H2O. • This formula indicates that eight molecules of water are bonded within the ionic crystal for every one formula unit of FeSO4 • Work through the Sample Problem page 86

  33. Review • Complete the revision question page 86 (22) • Complete the multiple choice questions pages 86, 87 • Complete review questions 1, 3, 5, 6, 8, 10, 11, 13 • Complete the Exam Practice Questions • Try this ionic compound construction kit- Ionic Compounds
