  1. STT-RAM Circuit Design MTJ Specs (Update), MTJ Sharing

  2. I-STT MTJ Specs (Jianping) • UPDATED SPECS • RP ≈ 744Ω • TMR ≈ 136% • AP→P: • 630μA Max (breakdown current) • 387μA for 3ns switching • 330μA for 5ns switching • P→AP: • 1.5mA Max (breakdown current) • Need more device measurements • IWRITE(P→AP)/IWRITE(AP→P): 1.5-2 • 1ns read pulse (P→AP) with 1% chance of write: 220μA • AP→P might be better

  3. Maximum Write Currents (Thick Oxide) • Thin Oxide: 1.25nm • Max VDD = 1.0V • LMIN = 50nm • Medium Oxide: 2.2nm • Max VDD = 1.5V • LMIN = 100nm • Per μm width: IMAX,MEDIUM/IMAX,LVT = 93% • Thick Oxide: 5.2nm • Max VDD = 3.3V • LMIN = 230nm • Per μm width: IMAX,THICK/IMAX,LVT = 73%

  4. MTJ Sharing TMR Degradation (Reading)

  5. TMR Degradation SL BL<M> BL<2> BL<1> Parallel Resistance (R||) degrades TMR WL<2> WL<N> WL<1> Parasitic Parallel Resistance MTJ1,1 MTJ1,2 MTJ1,M MTJN,M MTJ2,1 MTJ2,2 MTJ2,M MTJN,2 MTJN,1

  6. Effective RP and RAP • Worst case TMR’: largest RP’ and smallest RAP’ • Largest RP’: • Smallest RAP’

  7. Effective TMR • Putting it all together: Example 1kbit Arrays: • TMR = 120%, M = 2, N = 16, 32-bit words: TMR’ = 4.8% • TMR = 120%, M = 2, N = 8, 64-bit words: TMR’ = 9.8% • TMR = 120%, M = 2, N = 4, 128-bit words: TMR’ = 20.7%

  8. Monte Carlo Simulations (M = 2, 3) • ERROR IN MATLAB CODE used to generate last week’s Monte Carlo plots → Not simulating the intended cases! • Fixed and reran simulations → results not so good • Ran multiple simulations with and w/o random variations in RP and TMR (based on worst case from Jianping) • Extracted worst case TMR’ and TMR’ for 10% read error • For 128-bit words, with bit read error = 10.0%: • # error correcting bits = 36 (1/5 word) • Probability of a word error: 1 in 6,788 reads • # error correcting bits = 32 (1/4 word) • Probability of a word error: 1 in 3.59x106 reads • # error correcting bits = 43 (1/3 word) • Probability of a word error: 1 in 13.2x1012 reads

  9. TMR’ vs. N for 1T-2MTJ (M = 2)

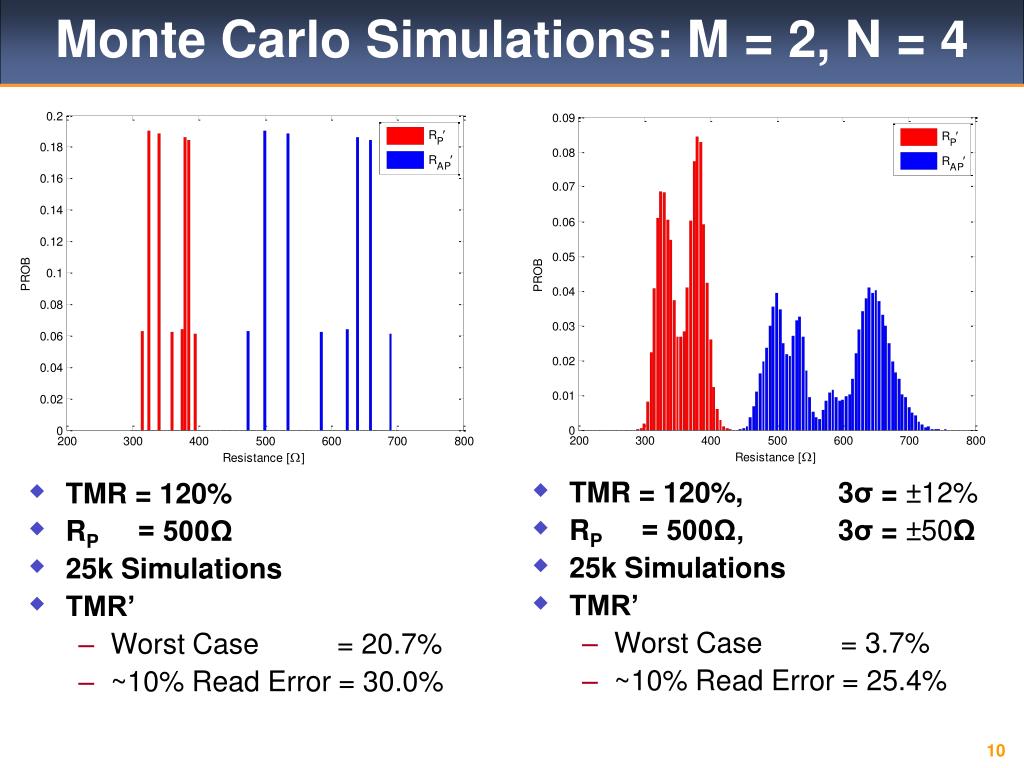

  10. Monte Carlo Simulations: M = 2, N = 4 • TMR = 120% • RP = 500Ω • 25k Simulations • TMR’ • Worst Case = 20.7% • ~10% Read Error = 30.0% • TMR = 120%, 3σ = ±12% • RP = 500Ω, 3σ = ±50Ω • 25k Simulations • TMR’ • Worst Case = 3.7% • ~10% Read Error = 25.4%

  11. Monte Carlo Simulations: M = 2, N = 8 • TMR = 120% • RP = 500Ω • 25k Simulations • TMR’ • Worst Case = 9.8% • ~10% Read Error = 14.6% • TMR = 120%, 3σ = ±12% • RP = 500Ω, 3σ = ±50Ω • 25k Simulations • TMR’ • Worst Case = -4.1% • ~10% Read Error = 12.4%

  12. Monte Carlo Simulations: M = 2, N = 16 • TMR = 120% • RP = 500Ω • 25k Simulations • TMR’ • Worst Case = 5.1% • ~10% Read Error = 8.5% • TMR = 120%, 3σ = ±12% • RP = 500Ω, 3σ = ±50Ω • 25k Simulations • TMR’ • Worst Case = -10.3% • ~10% Read Error = 4.7%

  13. TMR’ vs. N for 1T-3MTJ (M = 3)

  14. Monte Carlo Simulations: M = 3, N = 4 • TMR = 120% • RP = 500Ω • 25k Simulations • TMR’ • Worst Case = 0.0% • ~10% Read Error = 15.6% • TMR = 120%, 3σ = ±12% • RP = 500Ω, 3σ = ±50Ω • 25k Simulations • TMR’ • Worst Case = -10.1% • ~10% Read Error = 15.9%

  15. Monte Carlo Simulations: M = 3, N = 8 • TMR = 120% • RP = 500Ω • 25k Simulations • TMR’ • Worst Case = -11.2% • ~10% Read Error = -0.6% • TMR = 120%, 3σ = ±12% • RP = 500Ω, 3σ = ±50Ω • 25k Simulations • TMR’ • Worst Case = -16.7% • ~10% Read Error = -1.0%

  16. Monte Carlo Simulations: M = 3, N = 16 • TMR = 120% • RP = 500Ω • 25k Simulations • TMR’ • Worst Case = -15.9% • ~10% Read Error = -11.2% • TMR = 120%, 3σ = ±12% • RP = 500Ω, 3σ = ±50Ω • 25k Simulations • TMR’ • Worst Case = -23.4% • ~10% Read Error = -11.4%

  17. MTJ Sharing Device IREAD/IWRITE Requirements (Writing)

  18. Defining IREAD,MAX & IWRITE,MIN • IREAD,MAX: The maximum read current such that the probability of flipping the MTJ is less than some ε(i.e. ε = 0.1% → IREAD,MAX = 200μA) • IWRITE,MIN: The minimum write current such that the probability of failing to flip the MTJ is less than some ξ(i.e. ξ = 0.1% → IWRITE,MIN = 600μA)

  19. IREAD/IWRITE for 1T-2MTJ & 1T-3MTJ BL<1> • Example: 1T-2MTJ architecture WL<2> WL<1> BL<2> IWRITE,MIN α∙IREAD,MAX

  20. IREAD/IWRITE for 1T-2MTJ RP Case 1: RAP Case 1: RP Case 2: RAP Case 2: “1” “1” “1” “1” “0” “0” “0” “0” RAP RP RAP RP RP RP RP RAP RP RAP RP RAP RP RP RAP RP

  21. IREAD/IWRITE vs. TMR for 1T-2MTJ

  22. IREAD/IWRITE for 1T-3MTJ RP Case 1: RAP Case 1: RP Case 2: RAP Case 1: RP RP “1” “0” RAP RP RAP RP RP “1” “0” RP RP RP RAP RAP RP RAP “1” “1” “0” “0” RP RP RAP RAP RP RP

  23. IREAD/IWRITE vs. TMR for 1T-3MTJ

  24. SUMMARY • TMR Degradation (READING) • M = 2: • Not as good as previously thought • Read circuit need to work for 25-30% TMR • 10-12% for more wordlines • M = 3: not really possible (negative TMR) • IREAD/IWRITE (WRITING) • For TMR = 120%, χ = 1.5-2: • M = 2: IREAD/IWRITE > 0.36-0.43 • M = 3: IREAD/IWRITE > 0.42-0.49
