Advanced Column Circuit Design and Simulation for MTJ Memory Using IBM 65nm Technology

This document outlines the circuit design and simulation processes for a magnetic tunnel junction (MTJ) sub-array using IBM's 65nm technology. It details the constraints and performance metrics including write current requirements, read specifications, and voltage boosting methods. The MTJ sub-array configuration features a 64x512 architecture with a 32kb memory footprint. Key parameters such as resistive properties, reading current challenges, and pulse timing are meticulously analyzed, demonstrating significant insights for optimizing MTJ writing and reading operations.

jeneva
Télécharger la présentation

Advanced Column Circuit Design and Simulation for MTJ Memory Using IBM 65nm Technology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. STT-RAM Circuit Design Column Circuitry Simulation (IBM 65nm) Fengbo

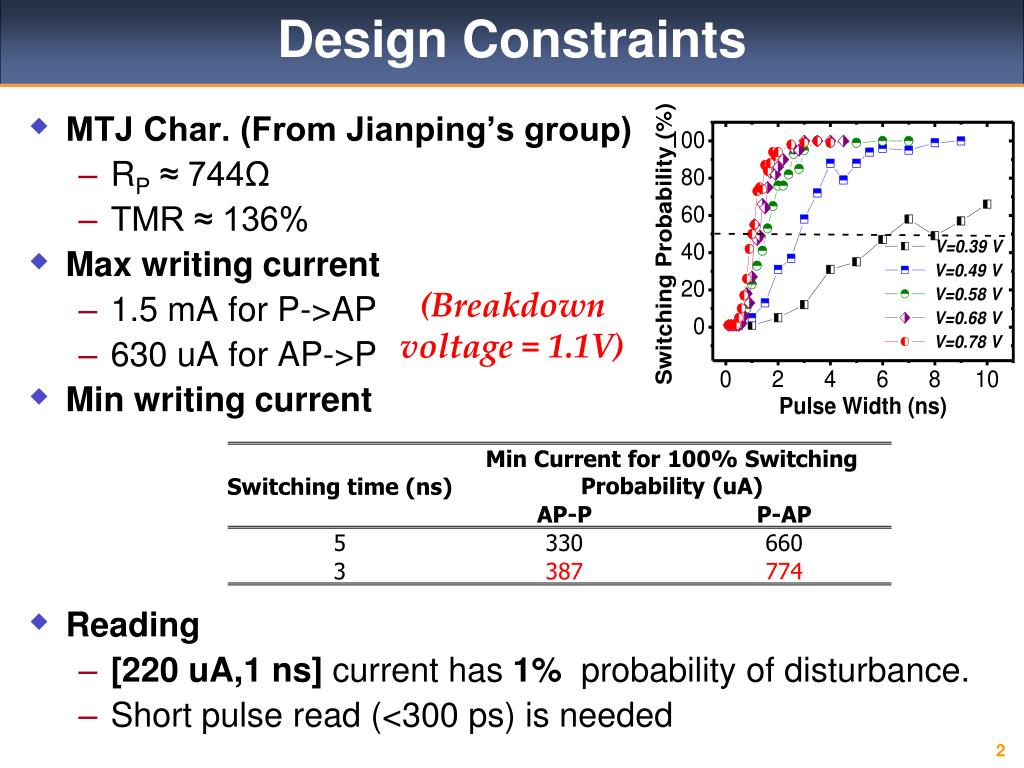

  2. Design Constraints • MTJ Char. (From Jianping’s group) • RP ≈ 744Ω • TMR ≈ 136% • Max writing current • 1.5 mA for P->AP • 630 uA for AP->P • Min writing current • Reading • [220 uA,1 ns] current has 1% probability of disturbance. • Short pulse read (<300 ps) is needed (Breakdown voltage = 1.1V)

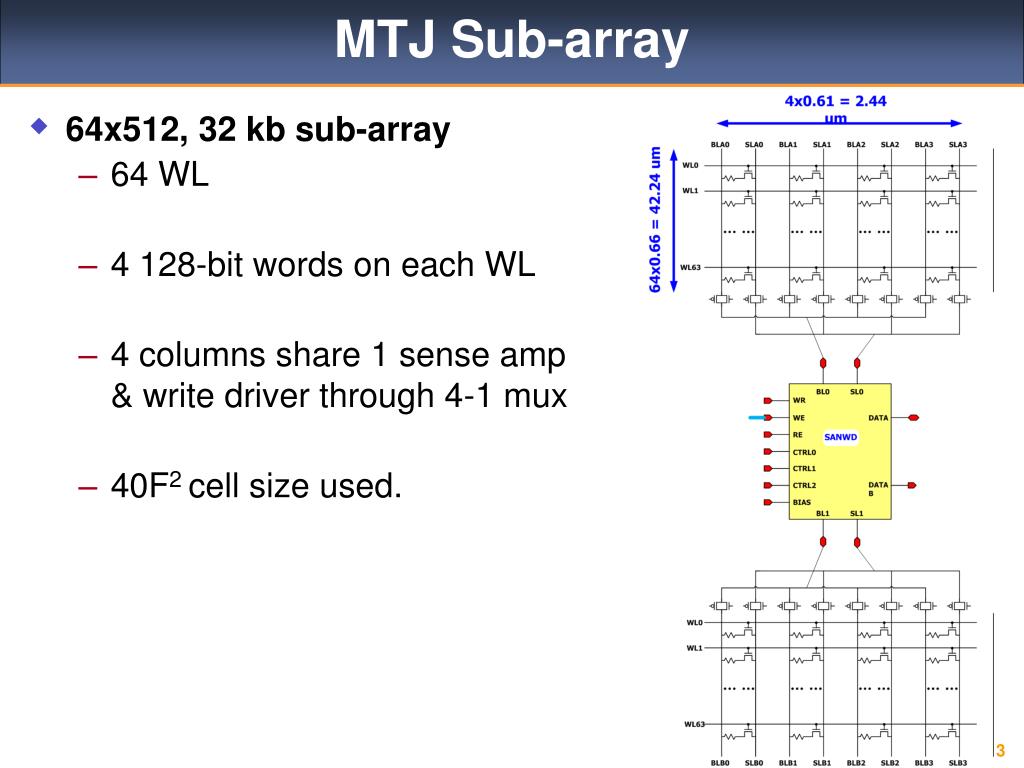

  3. MTJ Sub-array • 64x512, 32 kb sub-array • 64 WL • 4 128-bit words on each WL • 4 columns share 1 sense amp& write driver through 4-1 mux • 40F2 cell size used.

  4. Column Circuitry

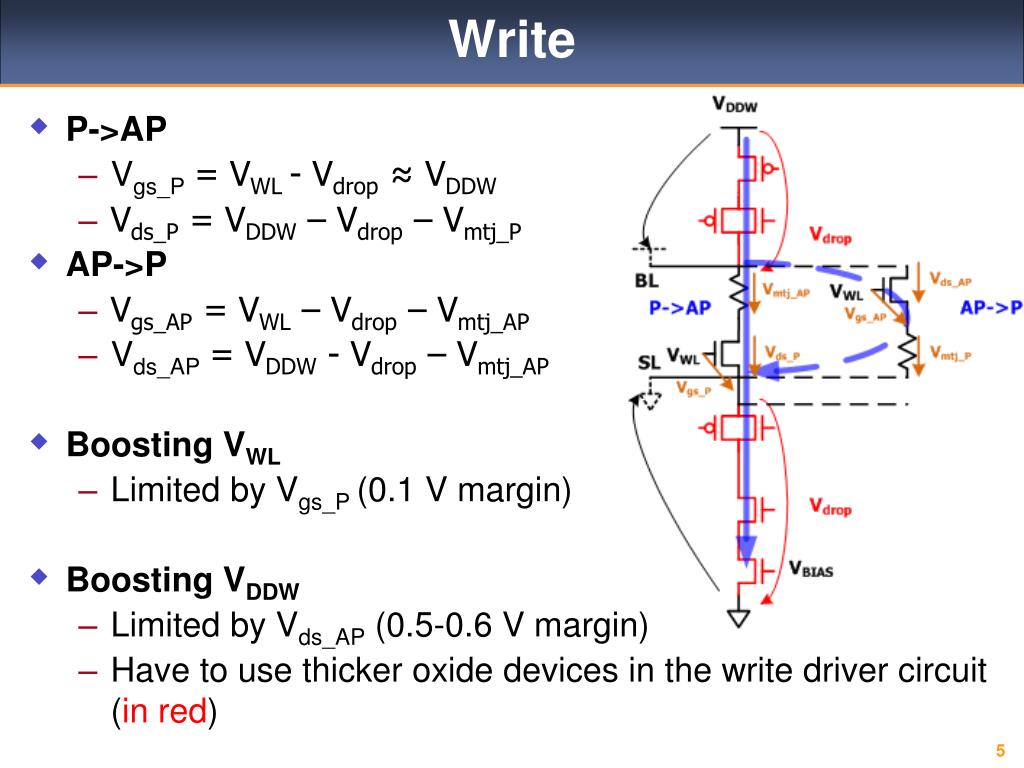

  5. Write • P->AP • Vgs_P= VWL - Vdrop ≈ VDDW • Vds_P = VDDW – Vdrop – Vmtj_P • AP->P • Vgs_AP = VWL – Vdrop – Vmtj_AP • Vds_AP= VDDW - Vdrop – Vmtj_AP • Boosting VWL • Limited by Vgs_P (0.1 V margin) • Boosting VDDW • Limited by Vds_AP (0.5-0.6 V margin) • Have to use thicker oxide devices in the write driver circuit (in red)

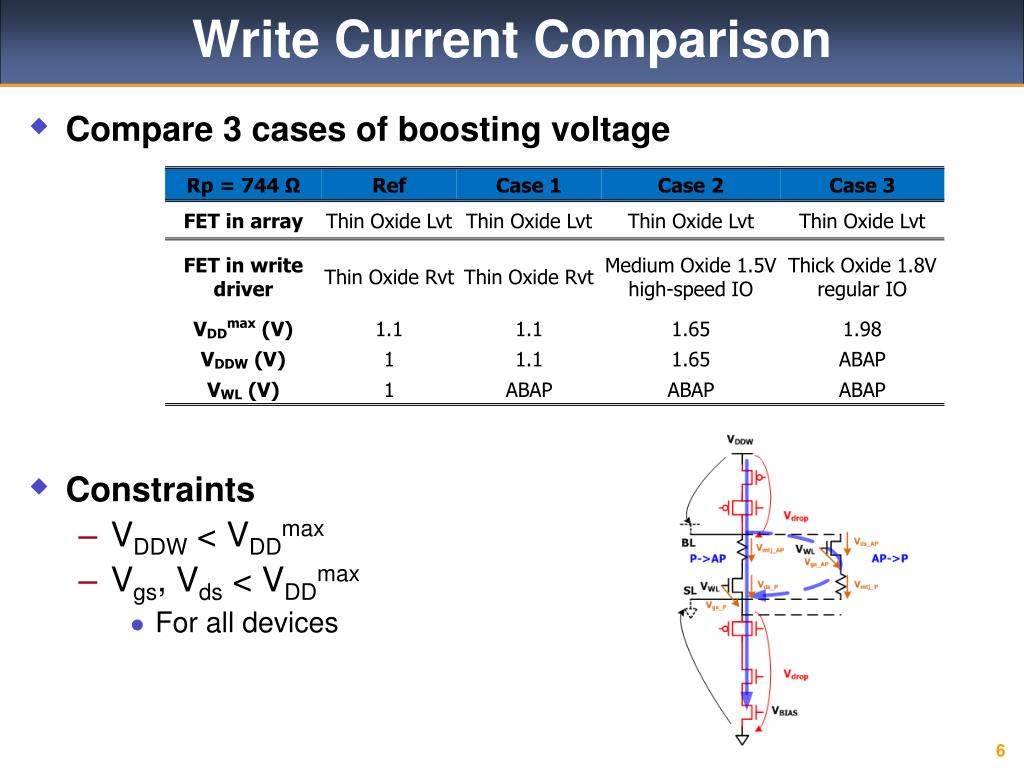

  6. Write Current Comparison • Compare 3 cases of boosting voltage • Constraints • VDDW < VDDmax • Vgs, Vds < VDDmax • For all devices

  7. Write Current Comparison Result • Boost up VDDW to 1.1V, VWL to max - 21-22% gain • Boost up VDDW to 1.5V, VWL to max - 30-33% gain • Medium oxide device used, 2.2x bigger write driver • Boost up VDDW to 1.9V, VWL to max - 35-37% gain • Thick oxide device used, 7.6x bigger write driver

  8. Read • Short pulse reading

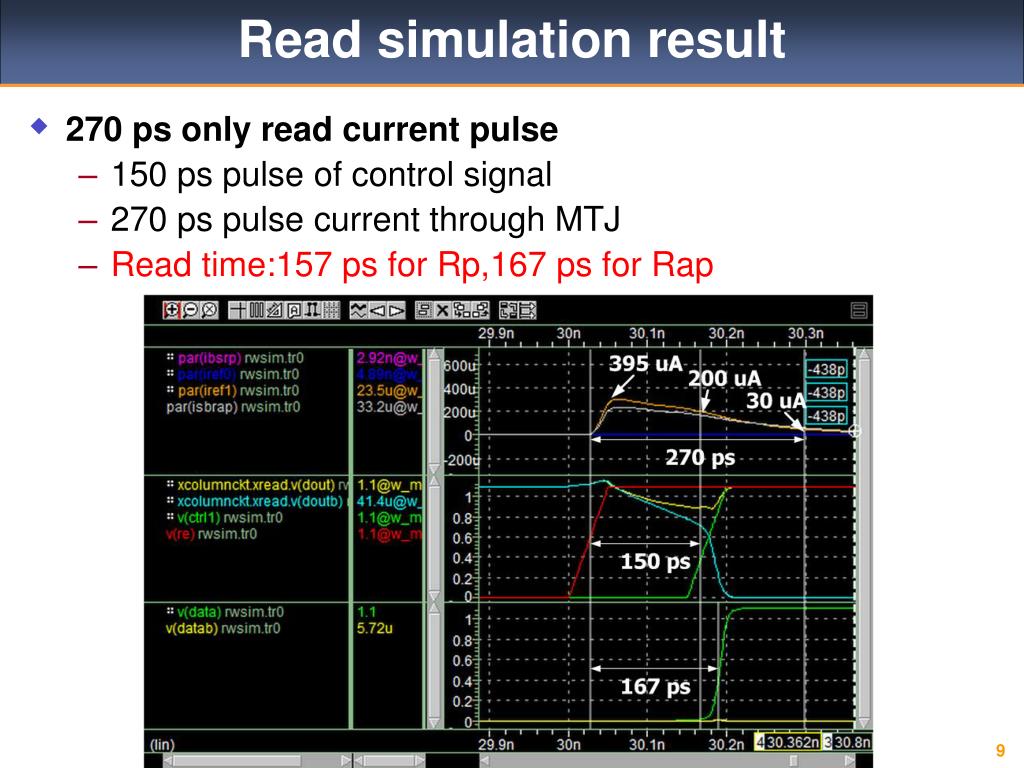

  9. Read simulation result • 270 ps only read current pulse • 150 ps pulse of control signal • 270 ps pulse current through MTJ • Read time:157 ps for Rp,167 ps for Rap
