Graphing Exercise. Swbat : use proper graphing techniques to graph data Swbat : interpret data from a graph and draw conclusions about the information. Instructions. Get a blank piece of paper. Fold it Hotdog and Hamburger to make even quarters. Mark the lines. Continued….

dillon
Télécharger la présentation

Graphing Exercise

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

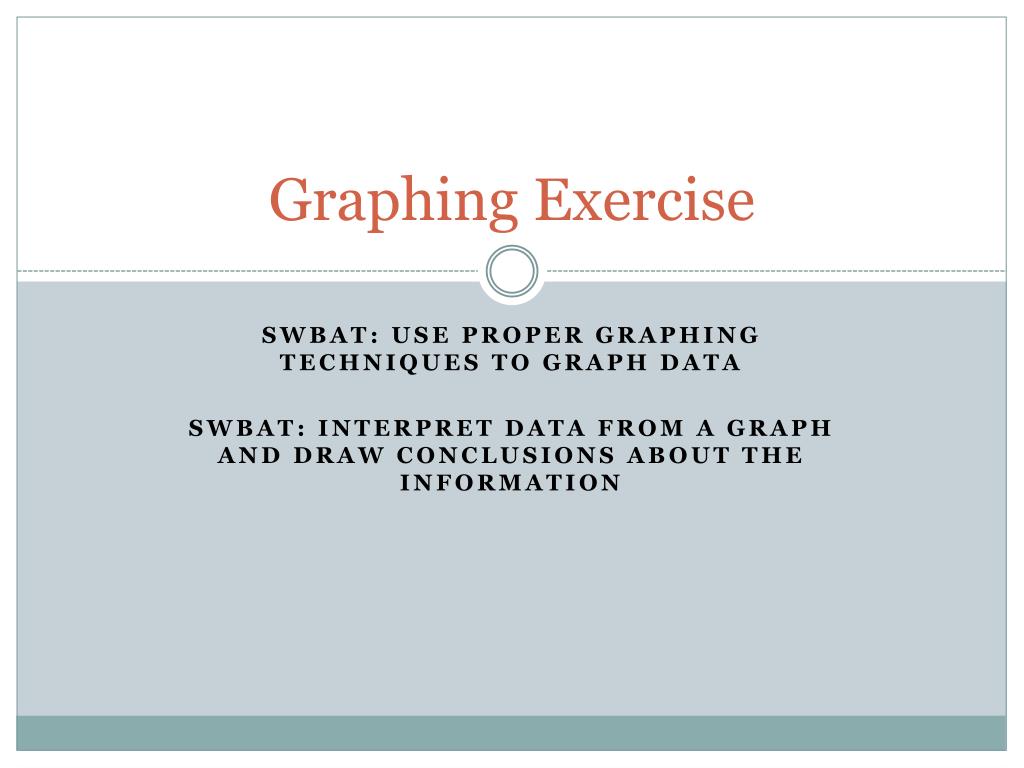

  1. Graphing Exercise Swbat: use proper graphing techniques to graph data Swbat: interpret data from a graph and draw conclusions about the information

  2. Instructions Get a blank piece of paper. Fold it Hotdog and Hamburger to make even quarters. Mark the lines.

  3. Continued… • Number each quarter of the paper starting in the top left moving clockwise. • Label each section as follows: • 1. Data Chart • 2. Distance Vs. Time • 3. Speed Vs. Time • 4. Acceleration Vs. Time 2 1 4 3

  4. Section 1 Copy the data from the slide into a chart in this section of your paper. It should have 2 columns. One for time and one for distance.

  5. Section 2 Draw a graph that relates distance and time. Remember we are controlling what time we take measurements and the recording the response. (DRY MIX) Distance in meters Time in Seconds

  6. Section 3 Remember that speed=distance/time. And that we only need to be concerned with the change in time when we look at speed. Calculate the speed the object is traveling each second and make a graph that relates speed (which we are calculating) and time (which we are choosing)(DRY MIX).

  7. Section 4 Acceleration is changes in velocity. Using the previous graph as a data source, draw a graph that relates acceleration (calculated) and time (which was chosen.

  8. Distance vs. Time 35 Distance in Meters 30 25 20 15 10 5 Time in Seconds 5 30 10 25

  9. Speed vs. Time 3 Speed in m/s 2 1 30 Time in Seconds 5 10 25

  10. Acceleration vs. Time Acceleration in m/s/s 3 2 1 5 30 10 25 -1 -2 -3 Time in Seconds

  11. On the Back… • Be sure you have your name at the top!!!! • Answer the following questions: • 1. What will a Distance Vs. Time graph look like if the object is standing still? • 2. What is happening if the same line was vertical? • 3. describe the lines on an Acceleration Vs. Time Graph when the object is sitting still. Moving at a constant speed of 3 m/s. • 4. Which direction will the line go in a Distance Vs. Time graph if the object is slowing down but still traveling forward?
