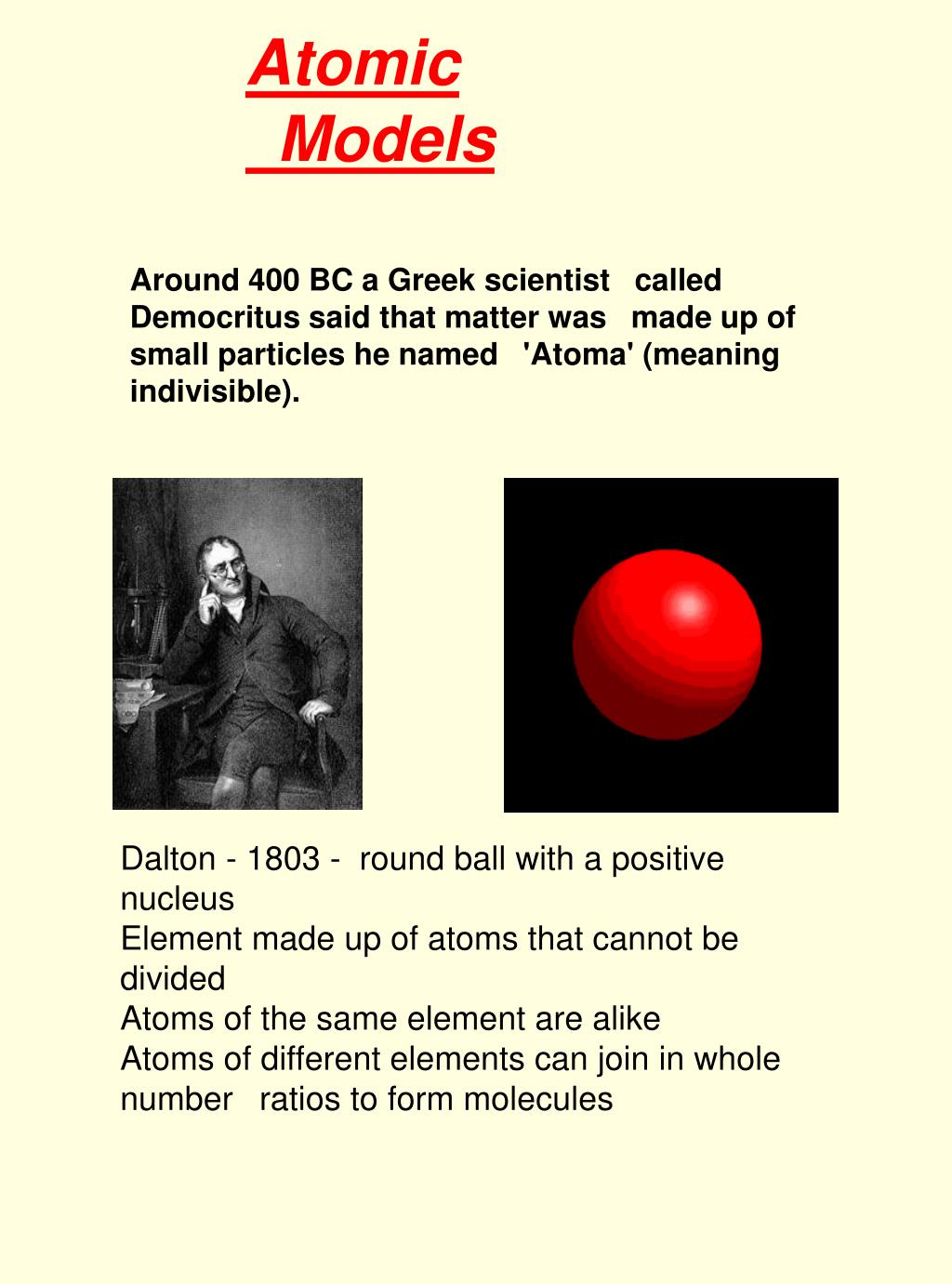

Atomic Models

1. Atomic
Models Around 400 BC a Greek scientist
called Democritus said that matter was
made up of small particles he named
'Atoma' (meaning indivisible). • Dalton - 1803 - round ball with a positive nucleus • Element made up of atoms that cannot be divided • Atoms of the same element are alike • Atoms of different elements can join in whole number
ratios to form molecules

2. Thompson - discovered electrons in 1897 Rutherford - discovered the nucleus 1911 Based on his alpha-particle scattering experiment on gold, Rutherford concluded that the atom consisted of a hard central core where most of the mass of the atom rested. http://www.learnerstv.com/animation/animation.php?ani=121&cat=chemistry

3. http://web.visionlearning.com/
custom/chemistry/animations/
CHE1.3-an-atoms.shtmlhttp://web.visionlearning.com/
custom/chemistry/animations/
CHE1.3-an-atoms.shtml Bohr - electrons
travel in paths
(energy levels)
around the nucleus
- 1913

4. Protons Positive Mass = 1 amu = 1.67 x 10-24 g Discovered by E. Goldstein in
1886 Symbol – p+ Electrons Negative charged Mass = 1/1840 amu =
9.11 x10-28 Discovered by J.J. Thompson in 1897 Symbol – e-1 Neutrons Neutral Mass = 1 amu = 1.67 x 10-24g Discovered by James Chadwick in 1932 Symbol - no

5. The Atomic Nucleus Small Dense Positive charge Core of an atom Contains protons and neutrons Discovered by Ernest Rutherford
in 1911 P+ No Valence electron - an electron in the
outermost energy level of an atom

6. Chadwick - discovered the neutrons in 1932 Modern Theory - electrons do not
move in definite paths but the exact
position, speeds and direction of
electrons cannot be determined. • Modern -
electron cloud
theory replaced
Bohr’s model in
1925 http://intro.chem.okstate.edu/1314F97/Chap
ter6/BohrQuantum.html

7. e- enter lowest energy level first • http://micro.mag
net.fsu.edu/electromag/java/atomic
orbitals/index.ht
ml • p orbitals can hold a maximum of two electrons so all three together can hold a
total of 6 electrons • As s orbital is shaped lie a sphere, so it has only one possible orientation in space.
An s orbital can hold a maximum of two valence electrons

8. The Atom 2 protons = +2 2 neutrons = 0 2 electrons = -2 Net charge = 0

9. Atomic Number Atoms are composed of
protons, neutrons and electrons Electrons surround the nucleus
and occupies most of the volume
of the atom The number of protons in the
nucleus of an atom Each element has a different
number of protons; therefore, a
different atomic number Number of protons = number
of electrons Therefore the atom is neutral The Atom –
mostly empty
space e
- e
- P+ no e
- e
-

10. Mass Number Mass Number Most of the mass
of an atom is in the
nucleus Protons = 1 amu Neutrons = 1 amu Electron = 1/1840
amu Mass Number =
Protons + Neutrons Neutrons = Mass
number - Protons 12 C 6 Symbol Atomic Number = p+

11. Neutrons = Mass Number - Atomic Number Isotopes 3.2.9

13. Isotopes Same number of protons and electrons Different number of neutrons Therefore – Different mass numbers 10p+ 12no 10p+ 10no 10p+ 11no 22 Ne 10 21 Ne 10 20 Ne 10

14. Atomic Mass Atomic mass = weighted average of the
masses of its isotopes You calculate the atomic mass based on
relative abundance Example: Copper atomic mass= 63.546 Isotopes – Cu-63 and CU-65 Isotope Cu-63 more abundant Y-10 20% Y-21 80% mass X % = Relative Weight 10 X .20 = 2 21 X .80 =16.8 Total = 18.8 amu
