The Appendicular Skeleton

tamal avatar
tamal
49 diapositives · 826 Views · Jul 25, 2014

The Appendicular Skeleton. Honors A&P. The Clavicle. The Pectoral Girdle. ID your view. Anterior Posterior. ID the Acromion. 1 2 3 4 5 6 7 8 9. ID the Infraspinous Fossa. 1 2 3 4 5 6 7 8 9. ID the acromial end of the clavicle. 1 2 3 4 5 6 7 8 9.

The Appendicular Skeleton - slide 1
01 / 49The Appendicular Skeleton
1 / 17

Télécharger la présentation

The Appendicular Skeleton
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. The Appendicular Skeleton Honors A&P

  2. The Clavicle

  3. The Pectoral Girdle

  4. ID your view • Anterior • Posterior

  5. ID the Acromion • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  6. ID the InfraspinousFossa • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  7. ID the acromial end of the clavicle • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  8. Upper Limbs

  9. Bones of Hand and Wrist

  10. ID the psiform • 10 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  11. ID the trapezoid • 10 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  12. ID the deltoid tuberosity • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  13. ID the greater tubercle • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  14. ID the trochlea • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  15. ID the radial tuberosity • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  16. ID the ulnarstyloid process • 11 • 12 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  17. The Pelvic Girdle

  18. Anatomical Comparison of Male and Female Pelvis

  19. The Lower Limbs

  20. Bones of Foot and Ankle

  21. Is this a male or female pelvis? • Male • Female • Cannot be determined

  22. ID the acetabulum. • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  23. ID the iliac crest. • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  24. ID the ischial spine • 1 • 2 • 3 • 4 • 5 • 6 • 7 • 8 • 9

  25. Id the cuboid tarsal. • A • B • C • D • E • F • G

  26. Id the navicular tarsal. • A • B • C • D • E • F • G

  27. ID the lateral malleolus • 1 • 2 • 3 • 4

  28. Do Now: • How do a male and female pelvis compare? • List 3 joints and describe their movements.

  29. Articulations: site where 2+ bones meet (joint) providing mobility and stability

  30. Classification of Articulations • Structure (material binding bones) • Fibrous (binding connective tissue) • Cartilaginous (binding connective tissue) • Synovial(joint capsule) • Function (amount of movement) • Synarthrosis (Immovable) -axial • Amphiarthrosis (slightly movable)-axial • Diarthrosis(freely movable)-appendicular

  31. Synathrosis (no movement) • Sutures(seams) - fibrous • Bones of the skull • Gomphosis • Peridontal ligament bonds tooth w/in alveolar margin • Cartilaginous • Synchondrosis – hyaline cartilage unites bones • Ex. Connection between 1st rib and manubrium of sternum, epiphyseal plates

  32. Amphiarthroses (Slightly Movable) • Syndesmosis • Fibrous joint connected by ligament • Ex. Distal articulation between tibia and fibula, interosseous membrane connecting radius and ulna • Symphysis • Bones joined by disk of fibrocartilage • Ex. Vertebrae, between pubic bones

  33. Diarthrosis (Synovial Movement) • Bound by joint capsule and contains synovial fluid • Structure • Articular Cartilage – hyaline • Joint Cavity – space w/fluid • Articular Capsule – fibrous layer & synovial membrane • Synovial Fluid – slippery & viscous lubricant • Reinforcing ligaments – strengthen joints • Nerves and bv– rich supply • Bursae – “ball bearing” or bag of lubricant • Tendon sheath – elongated bursae • Menisci – between interlocking bones of the knee and jaw

  34. Stability of Joint • Stabilized to prevent dislocation • Articular Surface • Shape – ball and socket of hip is most stable • Ligaments • More ligaments increase strength but limit motion • Can only stretch 6% of length • Muscle Tone • Tendons are most important stabilizing factor • Kept taut by muscle tone

  35. Angular Movements • Angular Motion • Flexion – reduces angle between articulating elements • Extension - increases angle between articulating elements • Adduction – moving towards midline • Abduction – moving away from midline • Circumduction – loop motion

  36. Rotational Movements • Rotational

  37. Special Movements • Inversion- turns sole of foot inward (opp-eversion) • Dorsiflexion- ankle flexion (plantar flexion pointed toe) • Opposition – grasping (thumb/fingers toward hand) • Protraction - move anterior across horizontal plane (opp retraction) • Elevation – move superior (opp depression)

  38. Structural Classification of Synovial Joints • Gliding – flat surfaces slide past one another • Ends of clavicles • Between carpals & tarsals • Between vertebrae • Hinge – angular movement in a single direction • Occipital bone and atlas • Elbow, knee, ankle • Interphalangeal joints • Pivot – permit rotation only • Atlas and axis • Proximal radius and ulna • Ellipsodial – angular motion occurs in 2 planes • Radius w/proximal carpals • Phalanges w/metacarpals (and metatarsals) • Saddle- permits angular motion but prevents rotation • thumb • Ball and socket - round head rests within depression • Shoulder • hips

  39. The Shoulder

  40. The Elbow

  41. The Hip http://www.edheads.org/activities/hip/

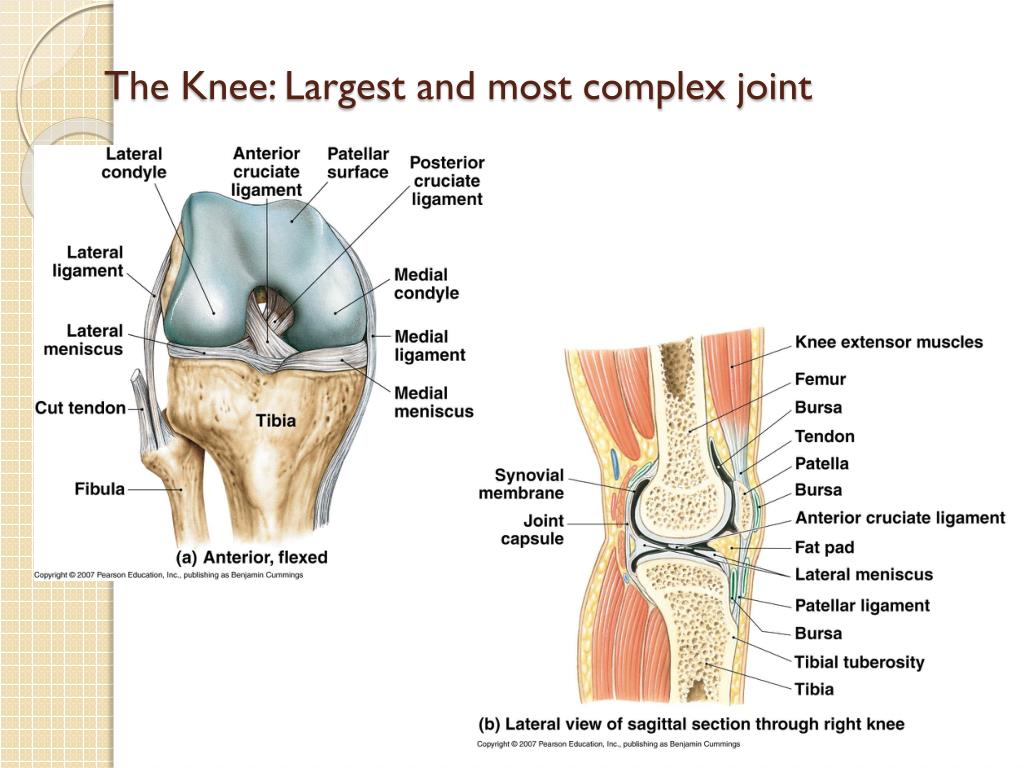

  42. The Knee: Largest and most complex joint

  43. OrganSystem Integration

  44. Which of the following does NOT influence the stability of the joint? • Shape of articular surface • Presence of strong reinforcing ligaments • Tone of surrounding muscles • Presence of synovial fluid

  45. Freely movable joints are • Synarthrosis • Diarthrosis • Amphiarthrosis

  46. Abduction and Adduction always refer to movements of the • Axial skeleton • Appendicular skeleton • Skull • Vertebral column

  47. Standing on tip toe is an example of • Elevation • Plantar flexion • Dorsiflexion • Retraction

  48. Joints that connect the fingers to metacarpals are • Ellipsoidal joints • Pivot joints • Saddle joints • Hinge Joints

  49. Subacromial, subcoracoid, and subscapularbursae reduce friction in • Hip • Elbow • Knee • Shoulder
