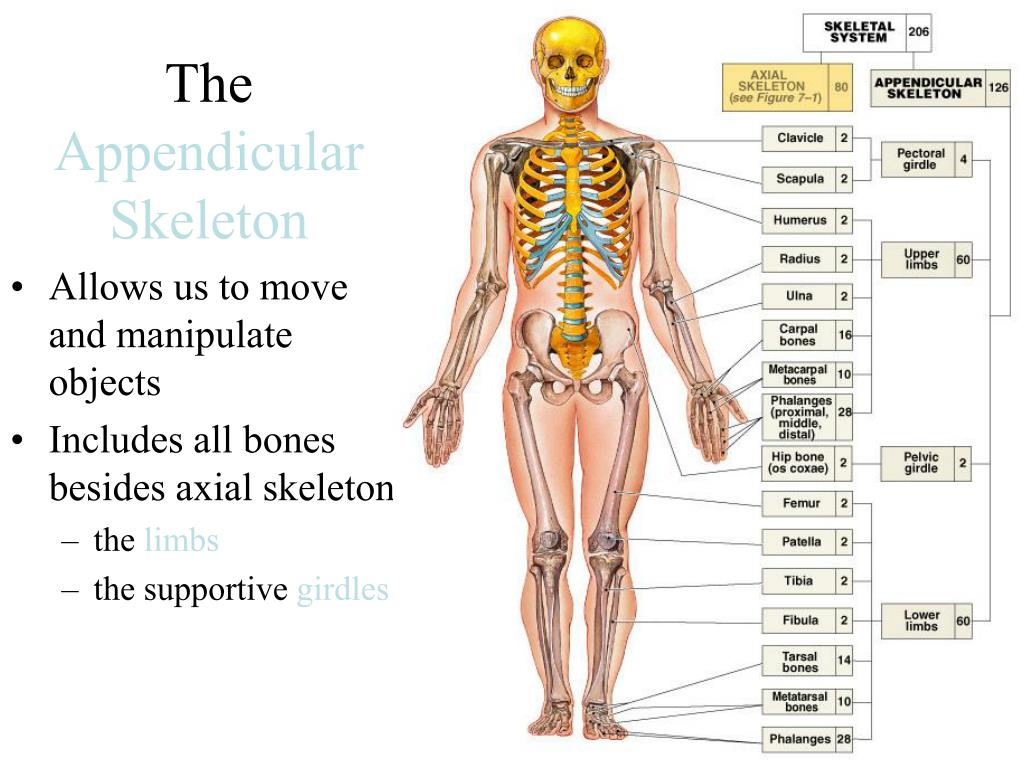

1. The Appendicular Skeleton • Allows us to move and manipulate objects • Includes all bones besides axial skeleton: • the limbs • the supportive girdles

2. Humerus: Anterior Clavicle Acromion process Greater tubercle Coracoid process Lesser tubercle Scapula Glenoid fossa Humerus Coronoid fossa Deltoid tuberosity Medial epicondyle Lateral epicondyle Capitulum Trochlea Radius Ulna Click R Button for Slideshow

3. Scapula

4. Shoulder Girdle (IR)

5. Humerus: Posterior Acromion of scapula Head of humerus Spine of scapula Greater tubercle of humerus Scapula Glenoid fossa of scapula Deltoid tuberosity of humerus Humerus Medial epicondyle of humerus Lateral epicondyle of humerus Olecranon process of ulna Radius Ulna Right Arm, Posterior For Slideshow Click R Button

6. Elbow (posterior view)

7. Which arm? What Position? View? Coronoid fossa of humerus Humerus Lateral epicondyle of humerus Medial epicondyle of humerus Capitulum of humerus Trochlea of humerus Head of radius Coronoid process of ulna Radial tuberosity Ulna Radius Styloid process of ulna Styloid process of radius Click R Button for Slideshow

8. MnemonicforLearningCarpals She Likes To Play Lunate In the moonlight Scaphoid A boat Triquetrum The third T Bone Pisiform Pea-shaped Hamate A hambone With a hook Trapezium: “It’s by the thumb” Capitate Trapezoid “Is by its side” Try To Catch Her Hand? View? Click R Button for Slideshow

9. Bones of the Wrist (Which hand? what view?)

10. Bones of Wrist (which hand?)

11. Hand Quiz B C D E A F G H K J Answers: Next Slide; for Drill Click Back & Forth Right Palm

12. Hand Quiz Answers B. Metacarpals C. Trapezium A. Phalanges D. Scaphoid E. Lunate F. Triquetrum G. Pisiform H. Hamate J. Capitate K. Trapezoid Right Palm

13. Lower Limb

14. Hipbones – Innominate Bone The Pelvic Girdle • Made up of 3 fused bones: • ilium • ischium • pubis • Acetabulum - hip socket • meeting point of ilium, ischium, & pubis • on the lateral surface of the Innominate articulates with head of femur

15. The Pelvis • Consists of 2 innominate bones, sacrum, & coccyx

17. Childbearing Modifications • Enlarged pelvic outlet • Broad pubic angle (> 100°) • Less curvature of sacrum and coccyx • Wide, circular pelvic inlet

18. Femur: What View Head of femur Pelvis Greater trochanter Lesser trochanter Femur Linea aspera Lateral condyle Medial condyle Tibia Fibula Which Leg? For Slideshow Click R Button

19. Lower Leg Patella Femur Medial condyle of femur Lateral condyle of femur Medial condyle of tibia Lateral condyle of tibia Tibial tuberosity Fibula Tibia Lateral malleolus Medial malleolus Talus (tarsal bone) Leg? View? Click R Button for Slideshow

20. Lower Leg2 Knee cap Femur Medial condyle of femur Lateral condyle of femur Medial condyle of tibia Lateral condyle of tibia Tibial tuberosity Fibula Tibia Lateral malleolus Medial malleolus Talus (tarsal bone) Right Leg, Anterior View

21. Mnemonic for Learning Tarsal Bones: Tiger Cubs Need M I L C Navicular A boat It sails on the Cs Talus Medial cuneiform (1) Intermediate cuneiform (2) Lateral cuneiform (3) Calcaneus Cuboid Click R Button for Slideshow

22. Foot Quiz H G J F E A C D B Which Foot? Answers: Next Slide; for Drill Click Back & Forth

23. Foot Quiz Answers H. Intermediate Cuneiform (2) G. Medial Cuneiform (1) J. Lateral Cuneiform (3) F. Navicular E. Talus A. Phalanges C. Cuboid B. Metatarsals D. Calcaneus Which Foot?

24. Wrist MRI
