Ionic Bonding and Chemical Formula Shortcut

Learn how to determine chemical formula for ionic compounds using the periodic table valence shell and criss-cross shortcut method. Practice naming and forming ionic compounds with examples provided.

cadee
Télécharger la présentation

Ionic Bonding and Chemical Formula Shortcut

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Ionic Bonding

  2. Using The Periodic Table Valence Shell: Full = 0 3+ 4± 3– 2– 1– 2+ 1+

  3. Chemical Formula for IonicCompounds Criss-Cross Shortcut • Write the Symbols of the elements with the metal first. • Determine each element’s charge and place that number above the symbol. • Criss-cross the numbers so that they become subscripts for the opposite symbol. • Reduce the subscripts if possible.

  4. Criss-Cross Example • Try Aluminium and Oxygen 2– 3+ Al2O3 O Al 2 3

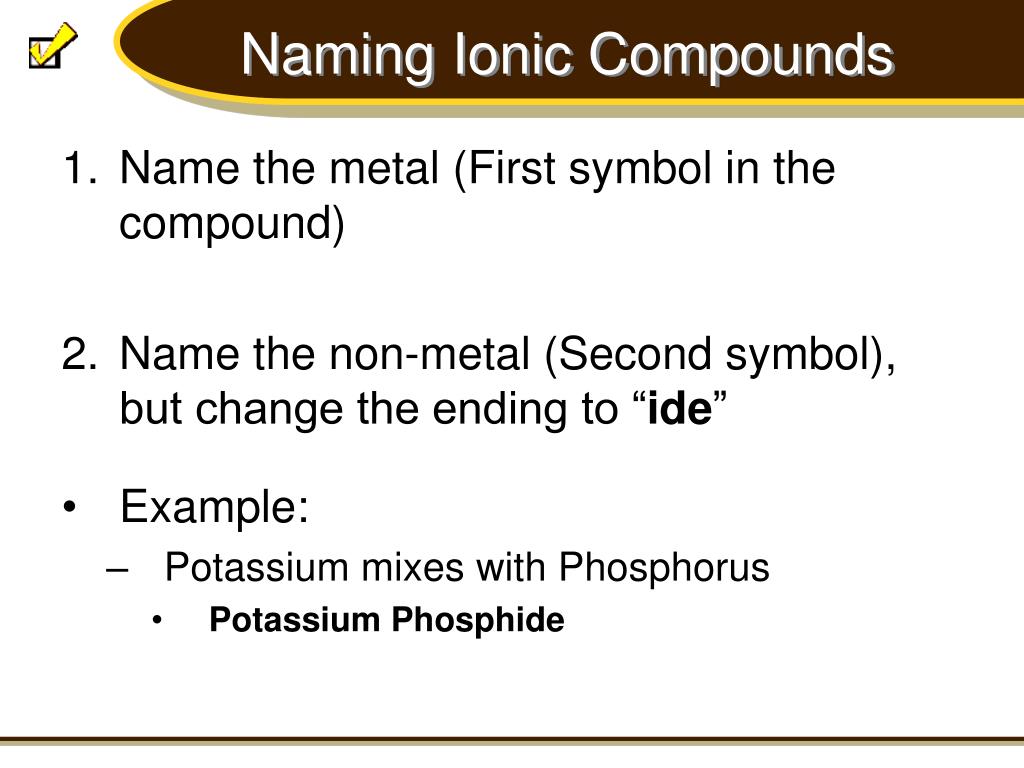

  5. Naming Ionic Compounds • Name the metal (First symbol in the compound) • Name the non-metal (Second symbol), but change the ending to “ide” • Example: • Potassium mixes with Phosphorus • Potassium Phosphide

  6. Examples • CaBr2 • Calcium Bromide • Na2N • Sodium Nitride • ZnO • Zinc Oxide

  7. Practice

  8. PolyValent Ionic Bonding

  9. What is the chemical formula formed by Copper and Iodine? We don’t know the charge for Copper, so we have to look it up. Refer to your Periodic Table 1– ? I Cu

  10. Atoms that can form more than one type of ion are called Polyvalent. • For example, Copper can form a 2+ ion AND a 1+ ion. • To be able to identify which ion is being used in an ionic compound, we use roman numerals in the middle of the name. • (I), (II), (III), (IV), (V) …

  11. Try Copper and Iodine 1– 1+ CuI I Cu 1 1 Copper (I) Iodide

  12. Try Copper and Iodine 1– 2+ CuI2 I Cu 1 2 Copper (II) Iodide

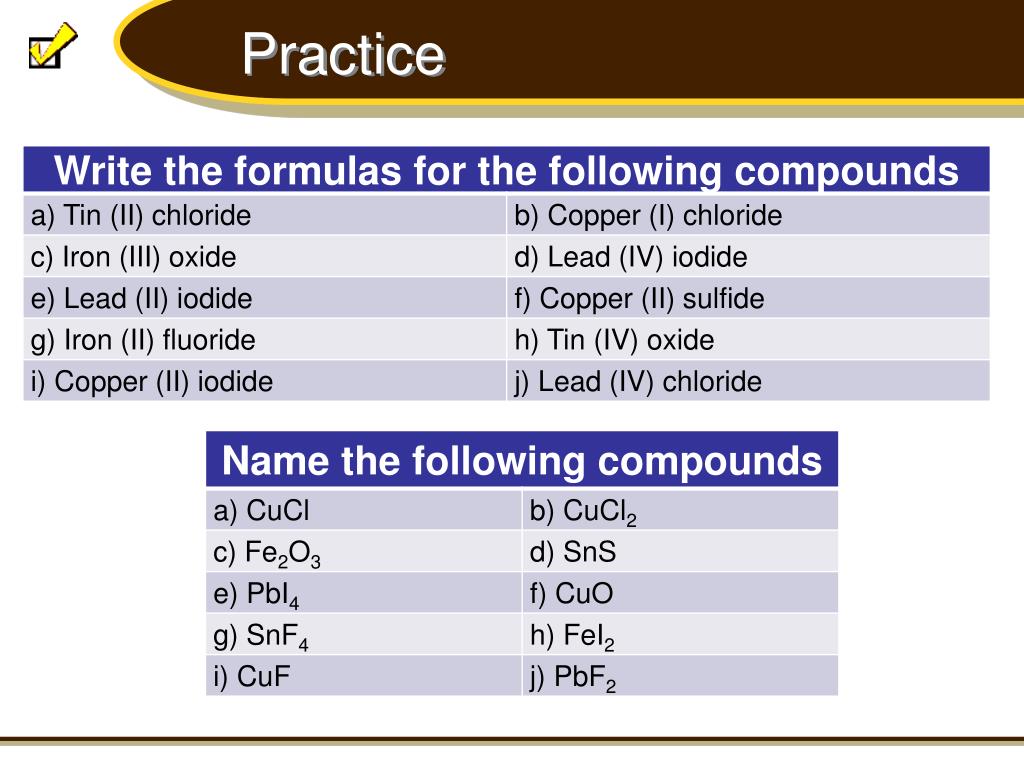

  13. Practice
